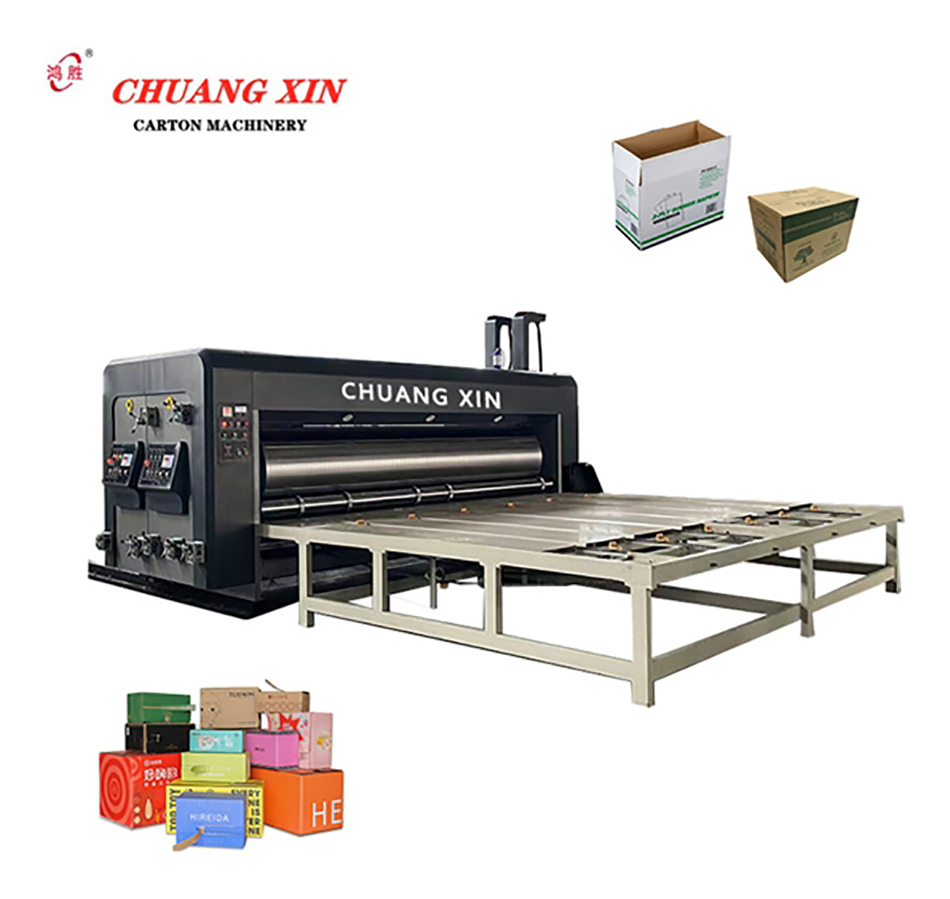

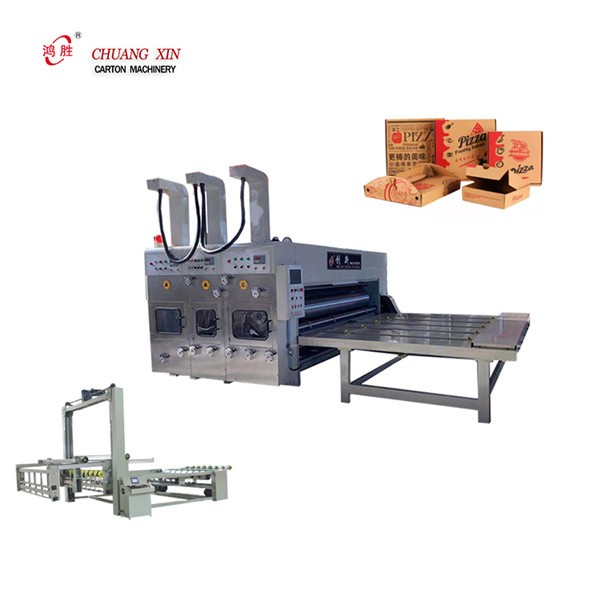

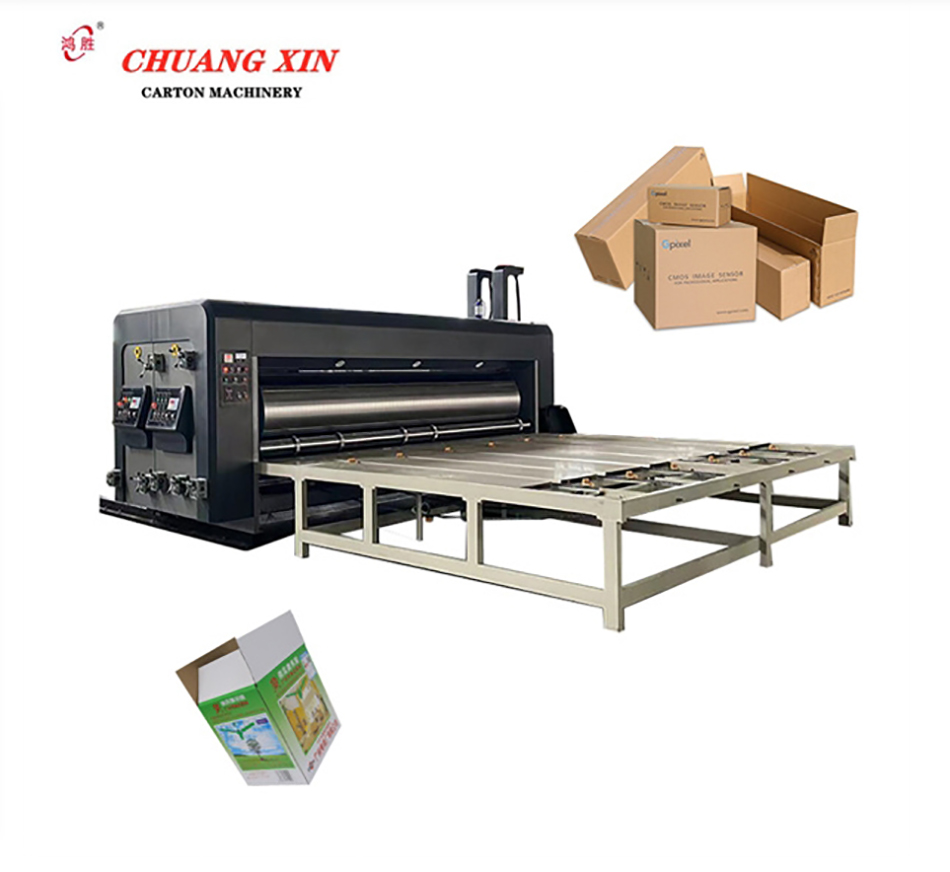

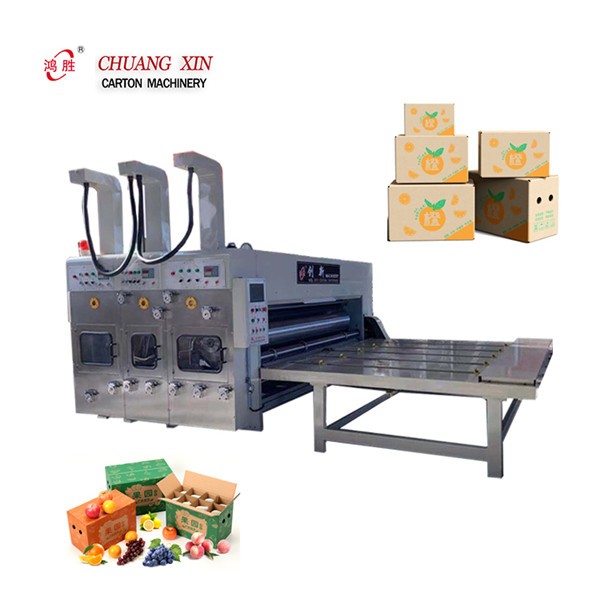

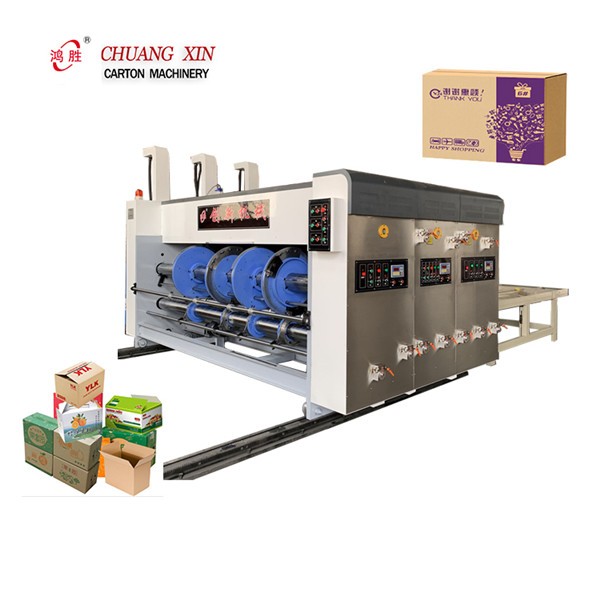

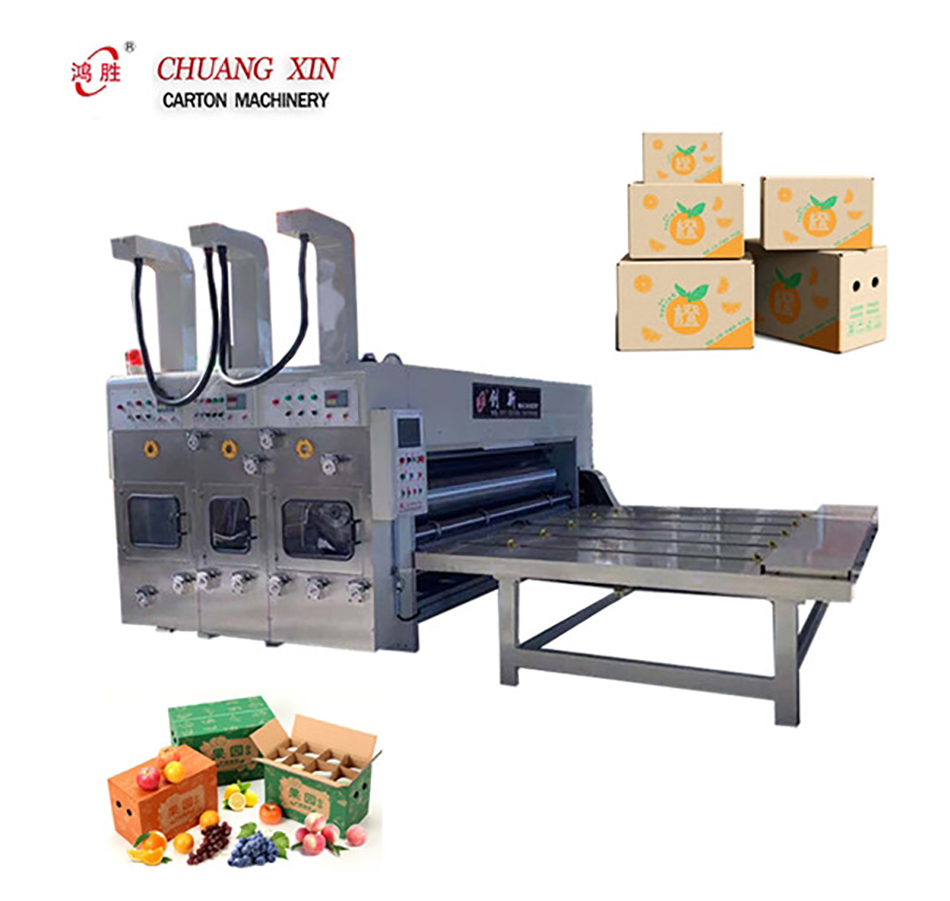

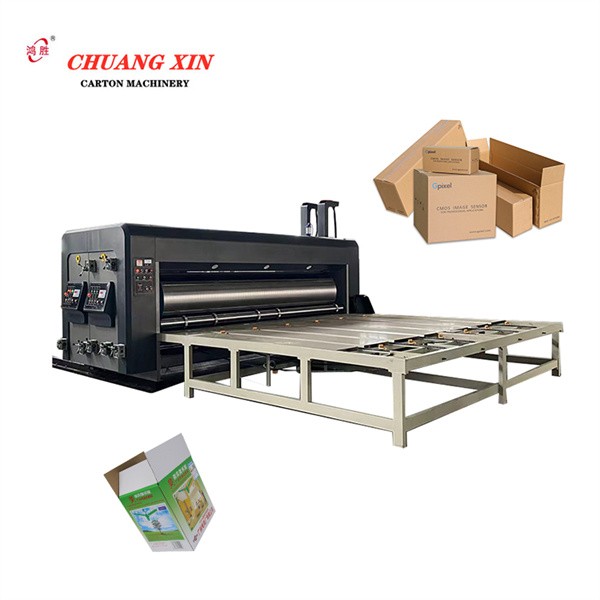

Two Colors Printing Slotting Paper Carton Die Cutting Semi-Auto Printer Machines
Function introduction
★ Printing Slotting Machine adopts sustainable chain feeding paper, and the counter records production quantity.
★ Each unit is equipped with a sudden stop switch, when in need of stopping to use it.
★ The machine adopts rubber supply ink roll system.
★ The machine adopts printing phase electric digital control.
★ Transverse phase, mechanical manual operate, control range is 12mm.
★ Slotting tool apron manual three points synchronous move transversely structure.
★ Transmission structure adopts double oil pump circulating lubrication.
|
Product Series |
1200 series |
1400 series |
1600 series |
2500 series |
|
|
( Model) (W×L)mm (Technical Parameter) |
1200×2200 1200×2400 1200×2800 |
1400×2400 1400×2800 1400×3200 |
1600×2400 1600×2800 1600×3200 |
2500×2400 2500×2800 2500×3200 |
|
|
Machine Design Speed (PCS/min) |
80 |
80 |
70 |
60 |
|
|
Machine Working Speed (PCS/min) |
60~70 |
50~60 |
50~60 |
30~50 |
|
|
Max. Feeding Size (mm) |
1200×2100 1200×2300 1200×2700 |
1400×2300 1400×2700 1400×3100 |
1600×2300 1600×2700 1600×3100 |
2500×2300 2500×2700 2500×3100 |
|
|
Min. Feeding Size (mm) |
320×650 |
380×750 |
480×750 |
550×750 |
|
|
Max. Printing Size (mm) |
1200×1900 1200×2100 1200×2500 |
1400×2100 1400×2500 1400×2900 |
1600×2100 1600×2500 1600×2900 |
2500×2100 2500×2500 2500×2900 |
|
|
Standard Printing Plate Thickness (mm) |
7.2 |
7.2 |
7.2 |
7.2 |
|
|
Color Accuracy (mm) |
≦1.0 |
≦1.0 |
≦1.0 |
≦1.0 |
|
|
Metal Supply Ink Roll (pixels) |
250~300 |
250~300 |
250~300 |
250~300 |
|
|
Supply Ink Method |
rubber shaft |
rubber shaft |
rubber shaft |
rubber shaft |
|
|
Feeding Method |
chain wheel feeding |
chain wheel feeding |
chain wheel feeding |
chain wheel feeding |
|
|
Printing Roll Transverse Movement (mm) |
±6 |
±6 |
±6 |
±6 |
|
|
Printing Roller Axial Adjustment |
360° |
360° |
360° |
360° |
|
|
Min. Slotting Distance (mm) |
Positive Cut (mm) |
170×170×170×170 |
185×185×185×185 |
185×185×185×185 |
200×200×200×200 |
|
Reverse Cut (mm) |
340×80×340×80 |
290×80×290×80 |
290×80×290×80 |
315×80×315×80 |
|
|
Max. Slotting Depth (mm) |
300 |
350 |
400 |
590 |
|
