Hebei Dongguang County ChuangXin Carton Machinery Manufacturing Factory

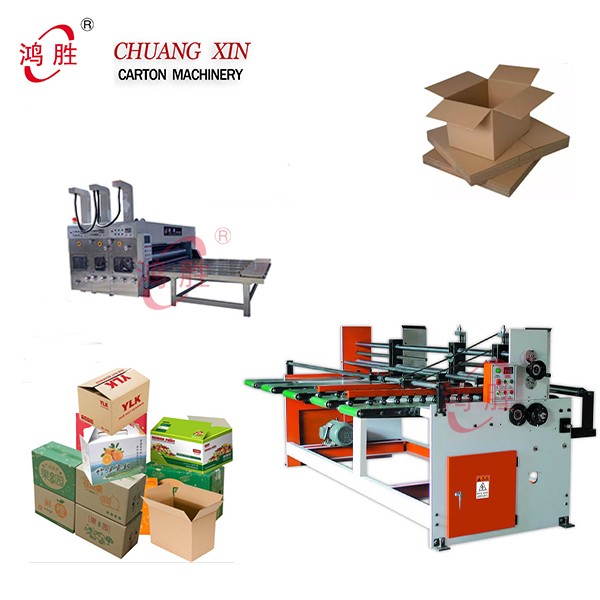

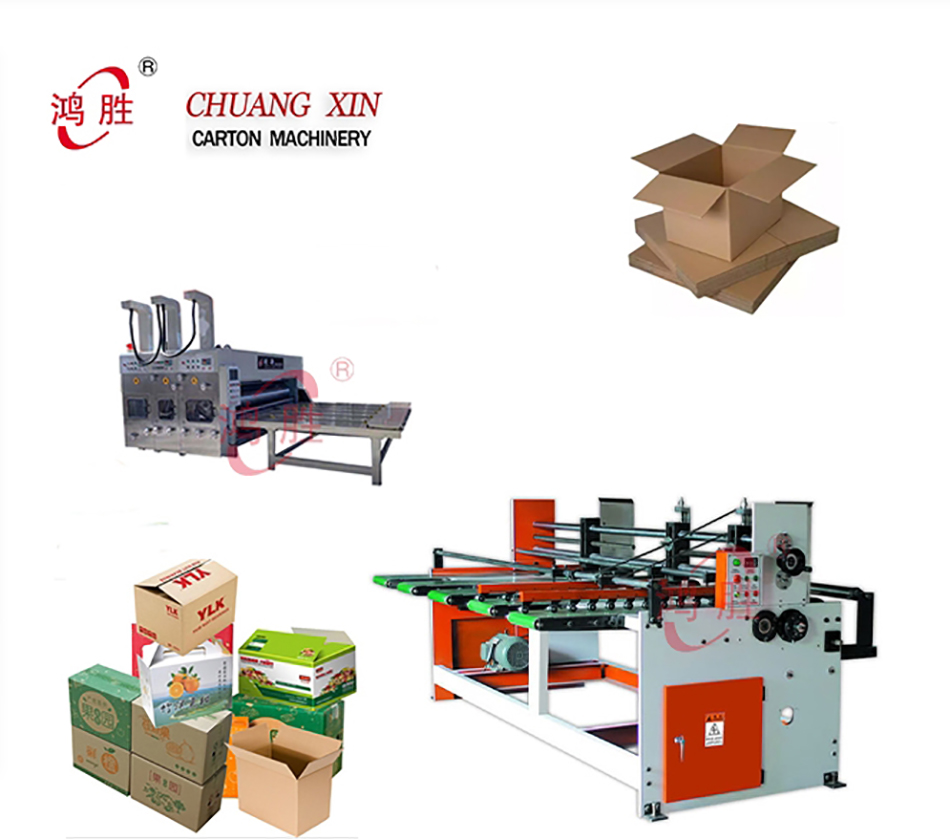

Packing Cardboard Carton Packing Machinery And Sheet Paper Feeder Machines Semi-Auto
Overview
Essential details
Type:Other, Other
Condition:New
Application:APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Corrugated cardboard
Packaging Type:Cartons
Packaging Material:Paper
Automatic Grade:Automatic
Driven Type:Electric
Voltage:380 V
Power:4.5 kw
Place of Origin:Hebei, China
Brand Name:CHUANG XIN
Weight:2500 KG
Dimension(L*W*H):1100mm*900mm*1850mm
After-sales Service Provided:Engineers available to service machinery overseas
Certification:CE
Working speed:0-60pieces/min

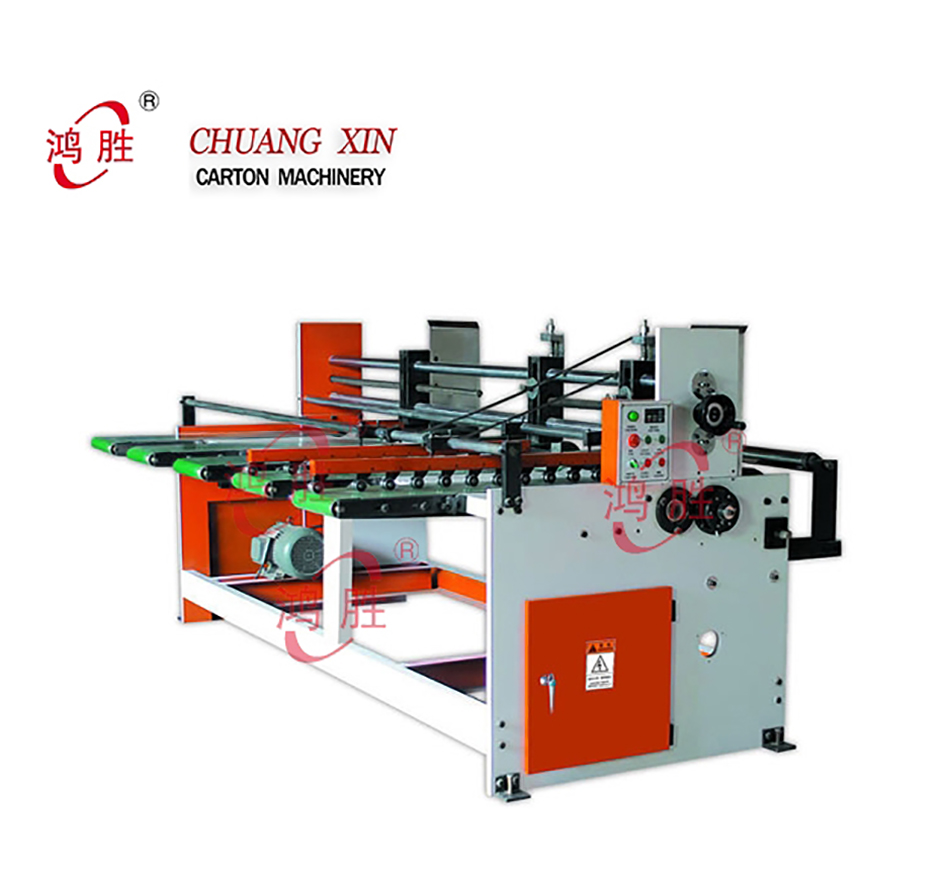

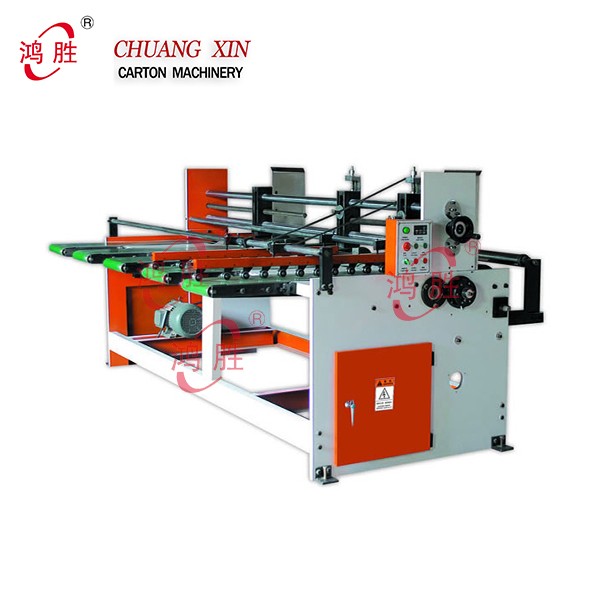

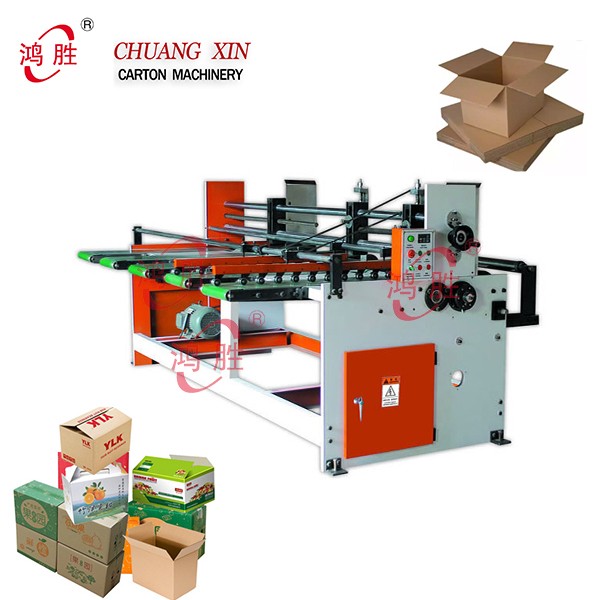

paper feeding system auto feeder machine
Auto feeder paperboard machine specifications:
1.The positions of side blocking plate,is electrically adjustable;prompt,accurate and easy.
2.The upper paperfeeding roller is wrapped with wearale rubber and subject to balance.
alignment;the lower paper-feeding roller is empaistic and chromeplated.
3.Production number setting device is fitted,needs no manual,accounting.
|
Has interval paper feeding device(continuous or interval manner is optional).convenient for large-sized cardboard printing. When auto 0 position return device is used for ordinary cartons,the position can be correctly adjusted by means of trial printing two picecs of cartons,thus reduces the waste of cartons. Has brush,can remove the impurities on the cardboard to improve printing two picecs of cartons,thus reduces the waste of cartons. The functions on the control panel are clear and centralized,easy for operation. |
This auto feeder paperboard machine can conbined with Chain feeder printing sotter and die-cutter machine to improve the working efficiency,easy operation,high performance.
We Cangzhou Tongbao Carton Machinery Co.Ltd,also can produce 1-6 colors printing slotter and die-cutter machines,3/5/7 layers corrugated cardboard production line.rotary die-cutter machine ,rotary slotter machine,folder gluer ,laminating macine,stitching machine and so on,welcome to contact with me to get more machine videos and specifications.
