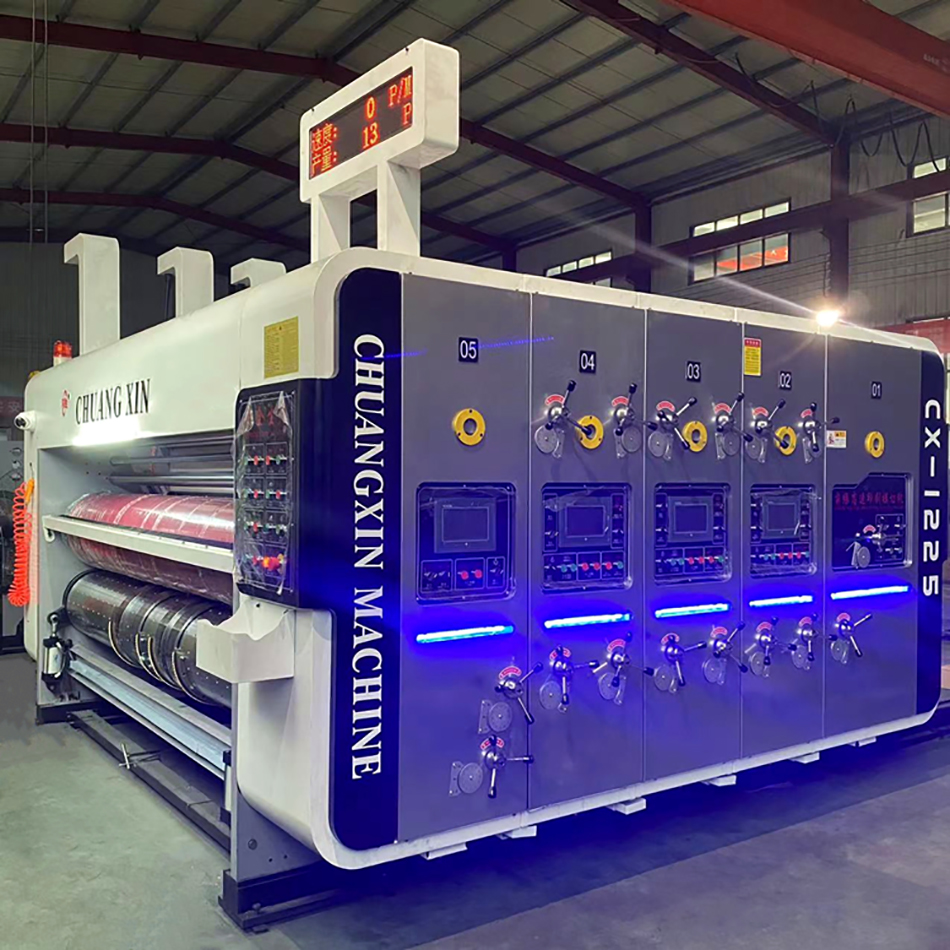

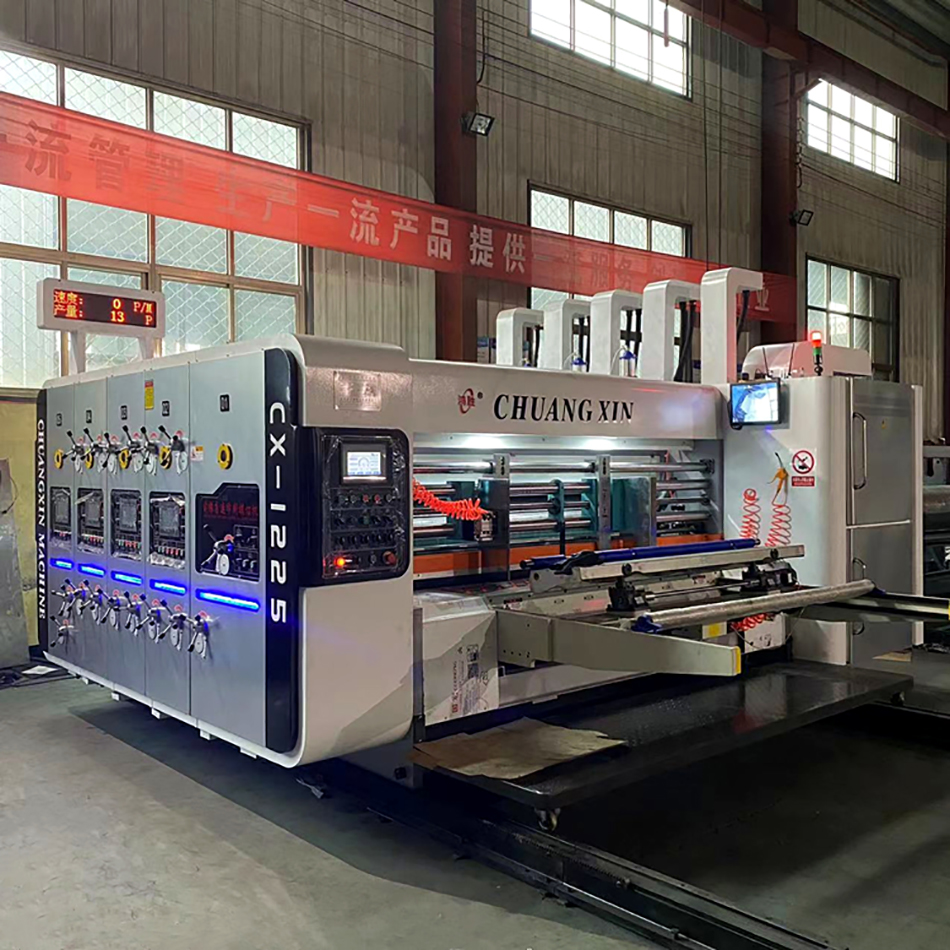

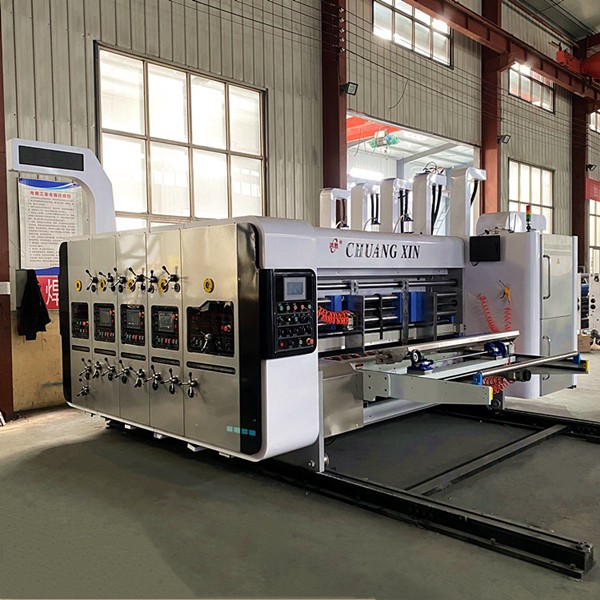

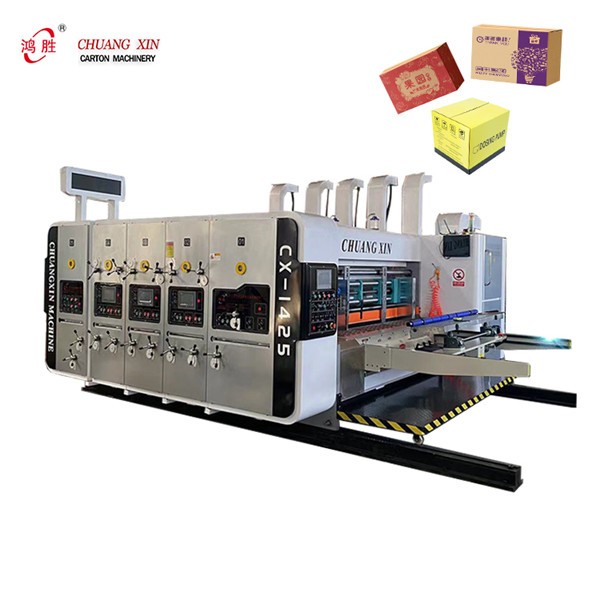

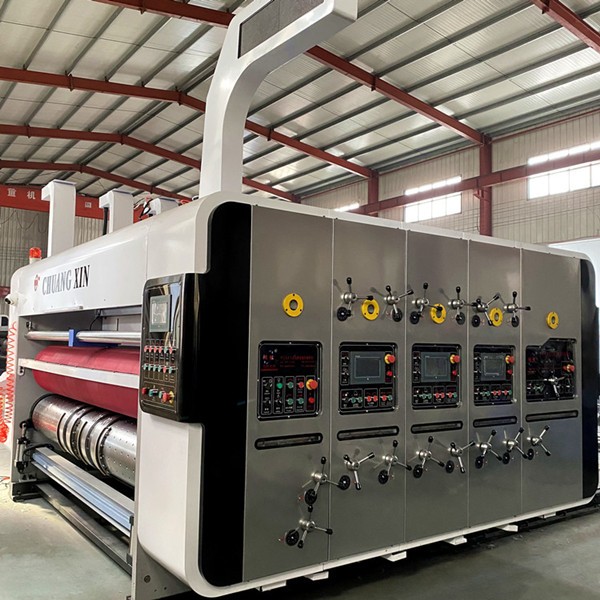

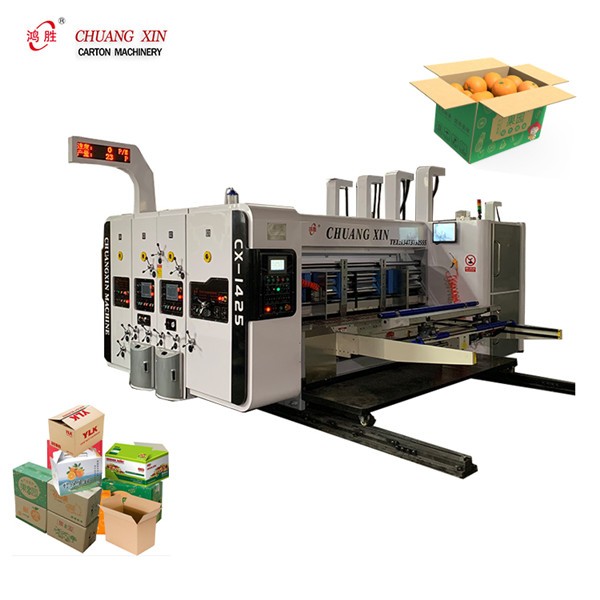

Pizza Box Making Machine Rotary Die Cutting Machine

System Introduction

1, the machine is designed and manufactured according to the requirements, with high standards, high reliability and safety.

2. This machine is controlled by PLC alone, color touch screen display, parameter setting and display intuitive.

3. All electrical, electronic and pneumatic components adopt international famous brand products.

4. Select high quality and high standard materials and accessories.

5.  the main drive gear all adopt special imported materials, grinding precision is high, durable, gear lubrication oil pump injection system.

6.  Automatically reset to zero.

7.  Different orders can be stored to speed up order operation.

8.keyless collar, long effect, high print

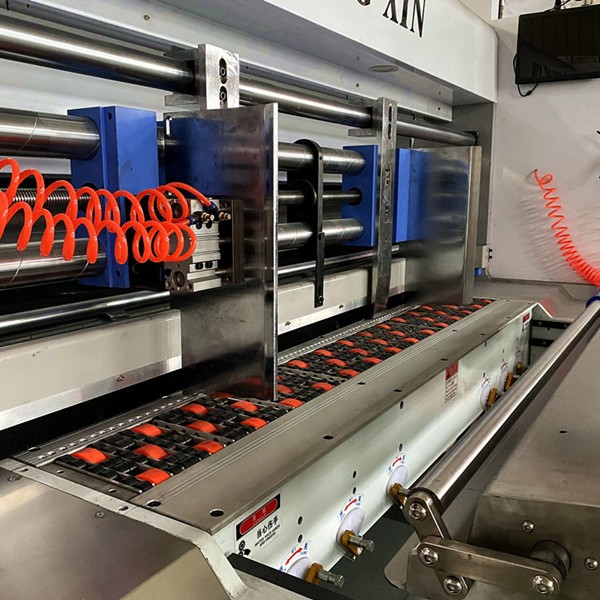

Paper feeding section

1. Advanced front feeding system, simple operation, high precision.

2.7.5kw high pressure centrifugal fan can adjust the air volume according to the degree of cardboard warping to ensure smooth feeding into the cardboard.

3. The baffle position is electrically adjusted by the lead screw drive, or the baffle pneumatic film device.

4. Each paper can be selected according to the need of each large size of paper and cardboard can also be processed.

5, 7 inch true color touch screen installation, 200 sets can be preset order, order query, zero. Order entry, machine synchronous zero adjustment, automatic/manual phase adjustment, machine parameter management, manual/automatic control of lifting plate distribution, automatic display of production quantity and production speed and set production quantity.

6. Interlocking control switch is arranged in the groove part, which can stop, stop or reset the paper feeding, reverse and reverse, each unit is divided, user-friendly operation. 7. Interlocking control switch is arranged in the groove part, which can stop, stop or reset the paper feeding, reverse and reverse, each unit is divided, user-friendly operation.

8. Wipe the dust removal device with a brush and equipped with a strong negative pressure suction fan to remove dust, paper scraps and other sundries on the surface of the cardboard and improve the printing quality.

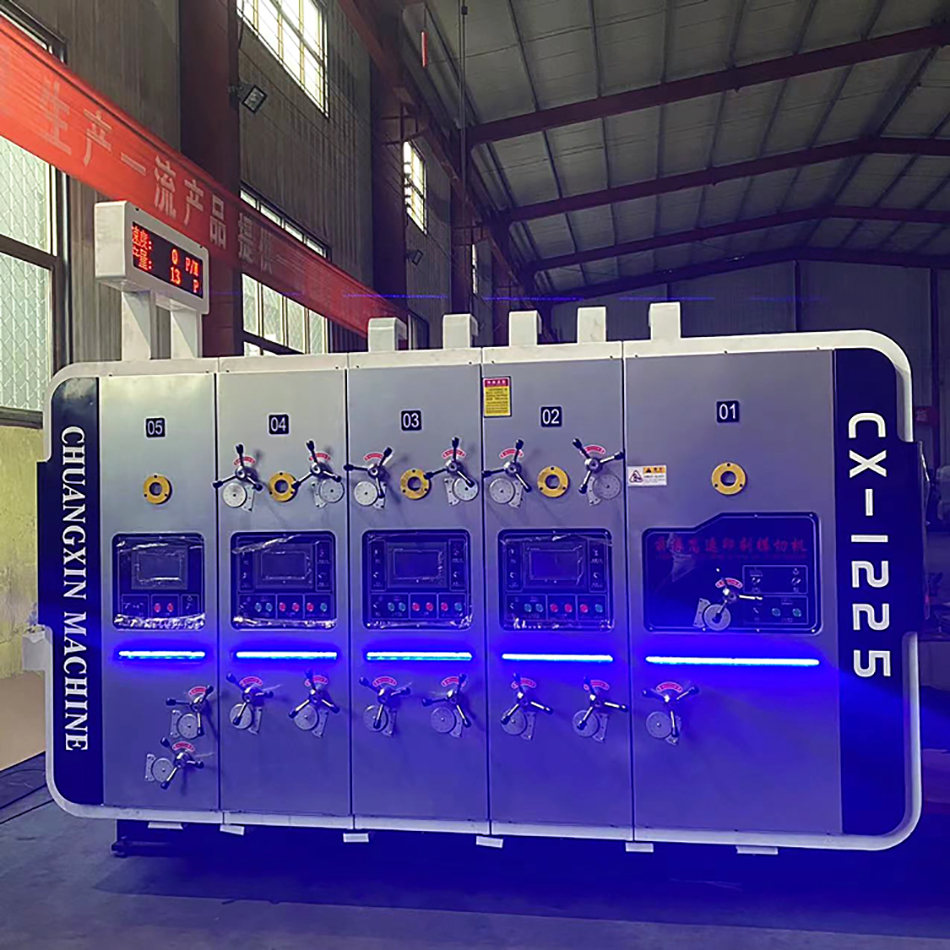

Printing Department

1. High quality steel production, surface grinding, hard chrome plating. Static balance adjustment, stable operation, suitable for high speed operation.

2. The horizontal and circular direction of the roll has its common line, which is convenient for the version.

3. Ratchet fixed scroll plate, left and right locking device, so that the plate alignment faster and more accurate.

4. Install foot switch to control the cylinder positive and negative, convenient for changing version.

5. Clearance adjustment self-locking worm gear box high precision, and equipped with three valve stem disc handle, convenient and fast. Adjustment range 0 to 11 mm.

6. Fine quality seamless steel pipe processing, steel pipe surface grinding hard chrome plating, dynamic balance correction.

7. PLC touch screen control and electric digital 360° adjustment (movement and stop can be adjusted) in the printing stage.

8, automatic zero adjustment device, ensure that the unit has a unified adjustment benchmark, test run can adjust the correct position, reduce cardboard waste.

2. Pressure type automatic lifting gear roller, and idling device, feeding roller and plate material contact down, stop feeding roller automatically rising and plate material separation, to protect plate material; Do not press automatic idling to prevent the ink from drying up

Slotting part

1.Electric control tool shaft adjustment, vertical and high size box.

2. Clearance adjustment adopts high-precision self-locking worm gear box, equipped with three valve stem disc handle, convenient and quick. The adjustment range is 0-11 mm.

3. Planetary gear structure, long service life.

4. Slotting phase PLC touch screen control and electric digital 360° adjustment (movement and stop can be adjusted). Zero phase device.

5, double groove, single axis, high box teeth adjust the electrical structure, so that the lubricating oil is not easy to pollute the carton. And the height of the adjusting box anti-collision protection, no damage to the machine.

6. Adopt unique shrapnel type dust removal device, easy to operate.

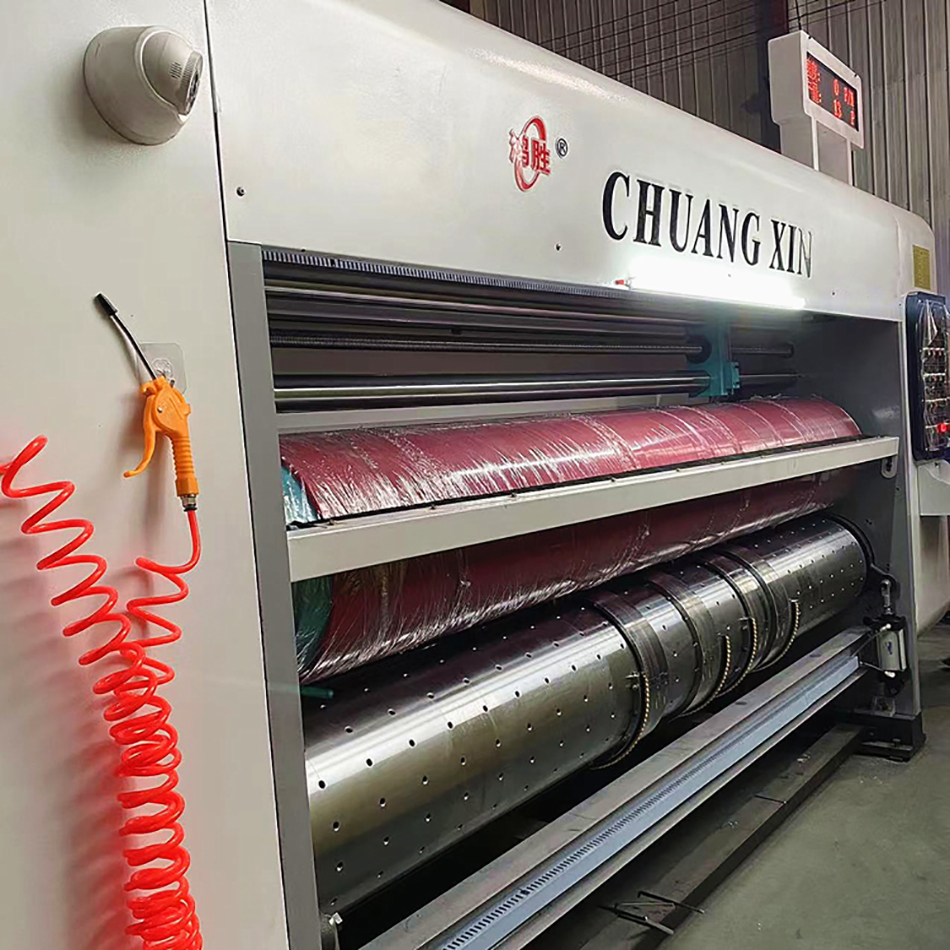

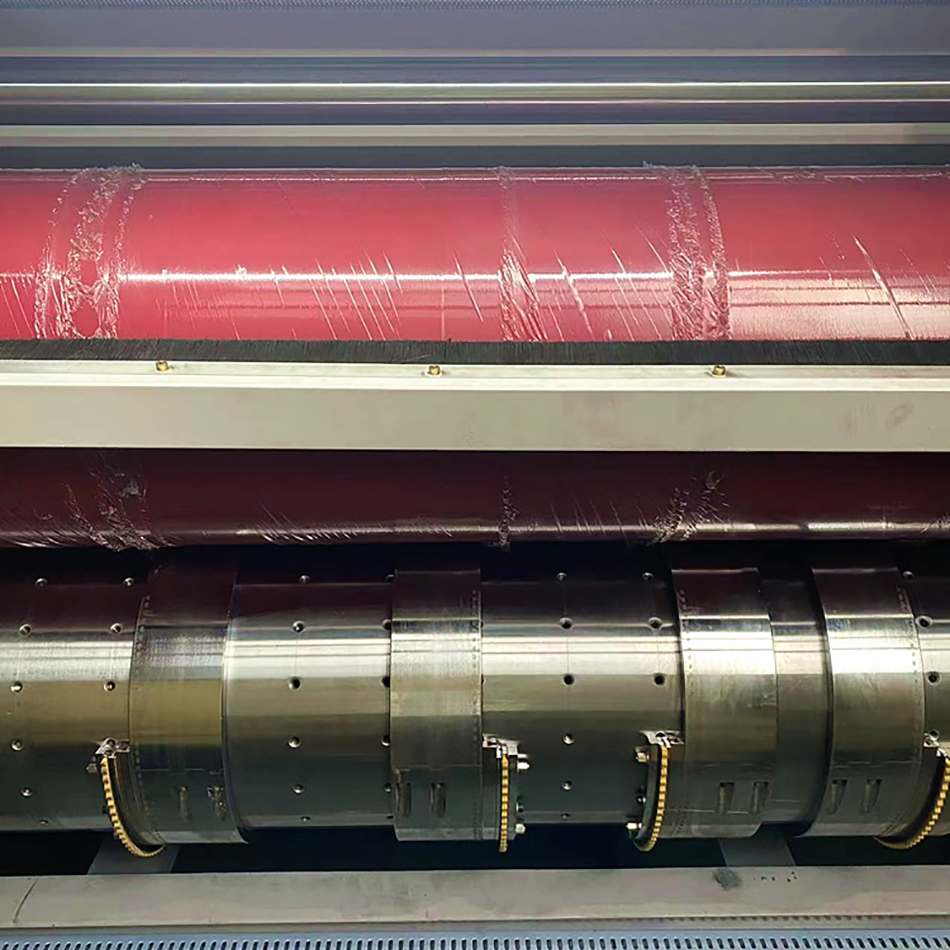

Die cutting part

1.Soft rolling cutting mechanism to improve the repeated utilization rate of slab.

2. The linear speed is automatically compensated to ensure the accuracy of die-cutting size of each carton.

3. Cam-type soft roll moves 40mm laterally, MATS wear evenly, improve the utilization rate of footpads and reduce costs. Die-cutting phase using electric

4. 360° digital adjustment (movement and stop can be adjusted).

5. Feed shaft, polished, hard chrome plated, equipped with four wheel feed.

6, feeding roller gear clearance adjustment mechanism, adjustment does not affect the gear, ensure transmission accuracy.

7. Clearance adjustment self-locking worm gear box, high precision, convenient and fast. Adjustment range 0 to 11 mm.
