Flute Laminator

Semi-auto Flute Paper Board Laminating Machine lamination

Place of Origin: Hebei, China
Brand: chuangxin
Model: Payment and Shipping Terms:
MOQ: One set
Packaging Details: Tray
Delivery time: 50-60 days
Payment Terms: Wire Transfer Premium
  • Product Detail

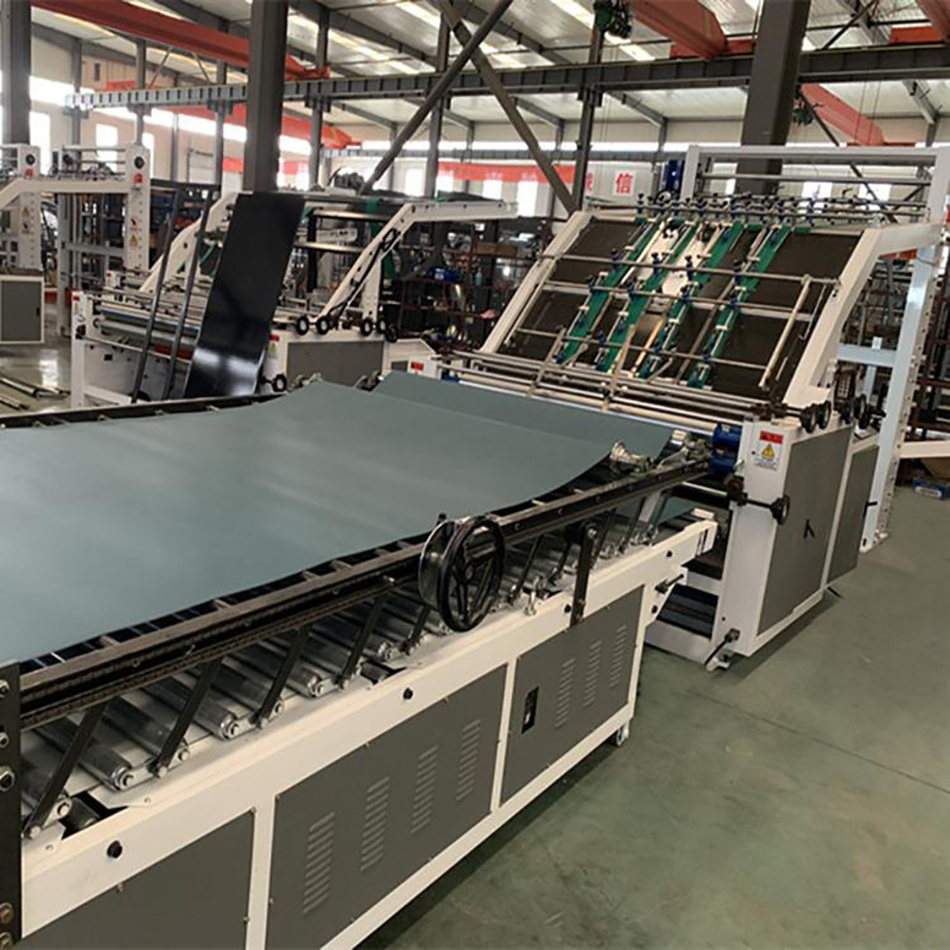

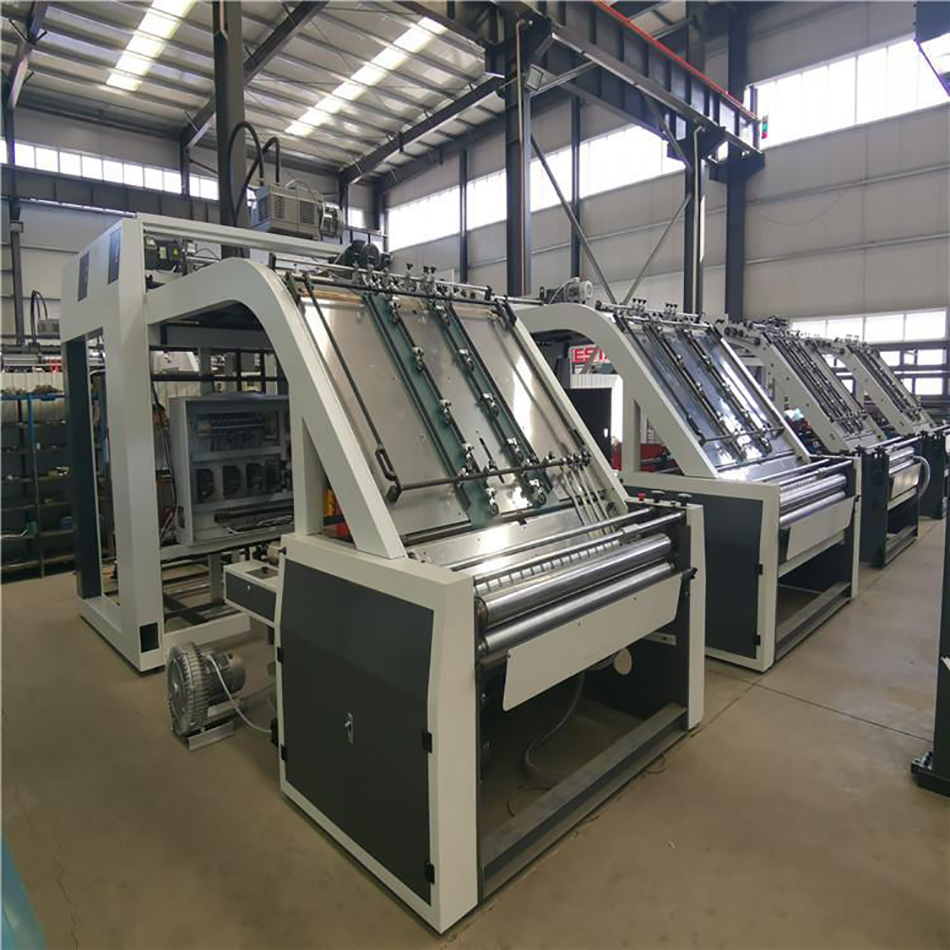

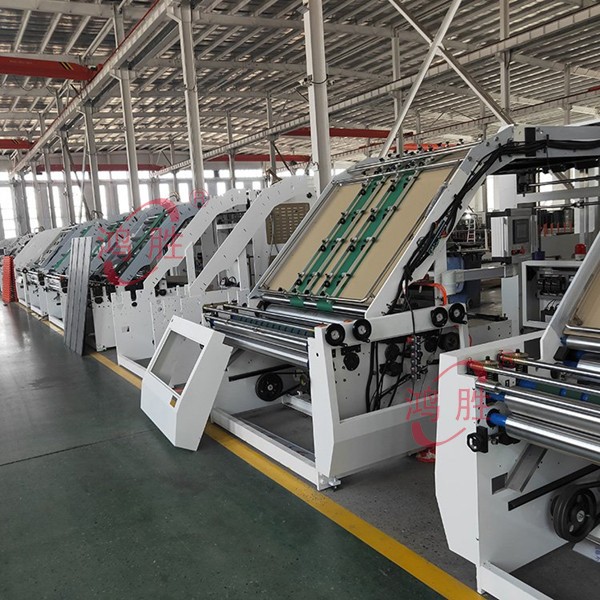

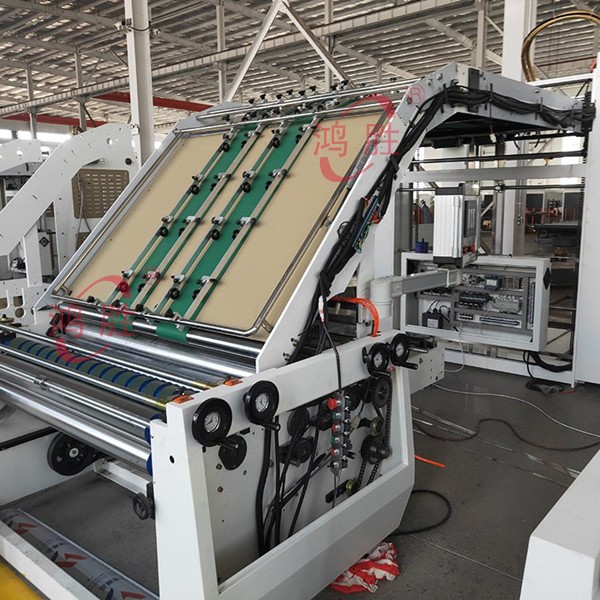

Semi-auto Flute Paper Board Laminating Machine lamination

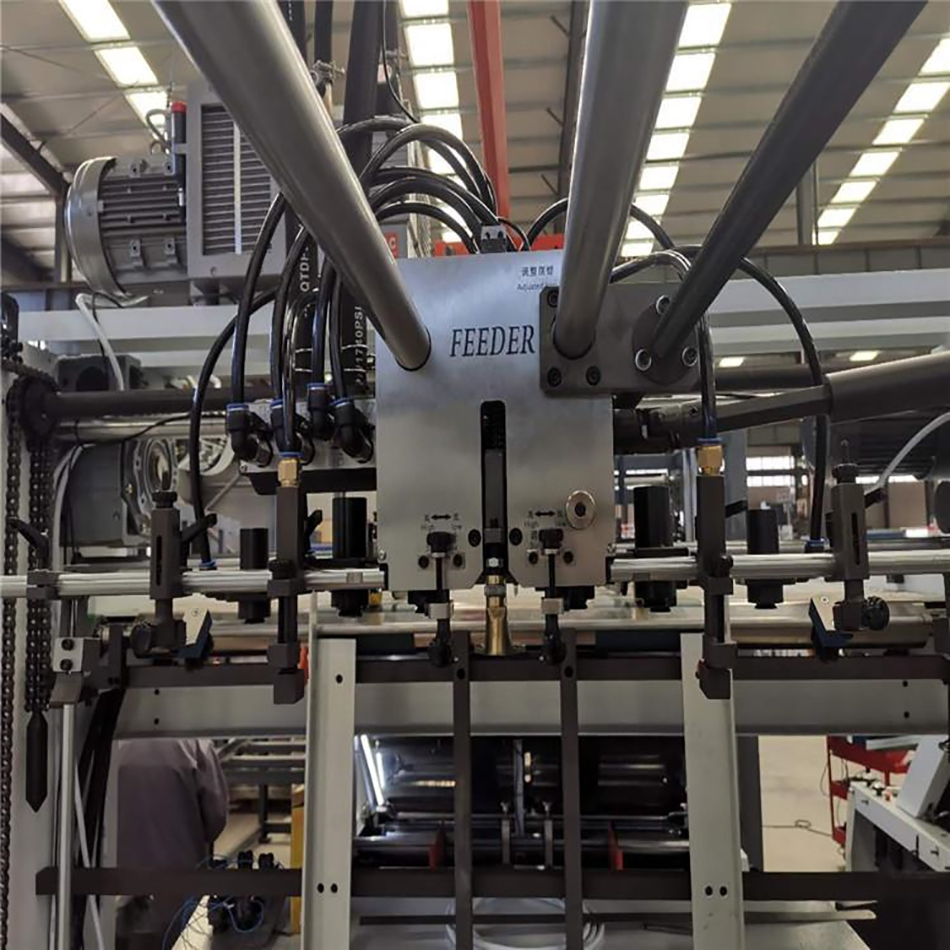

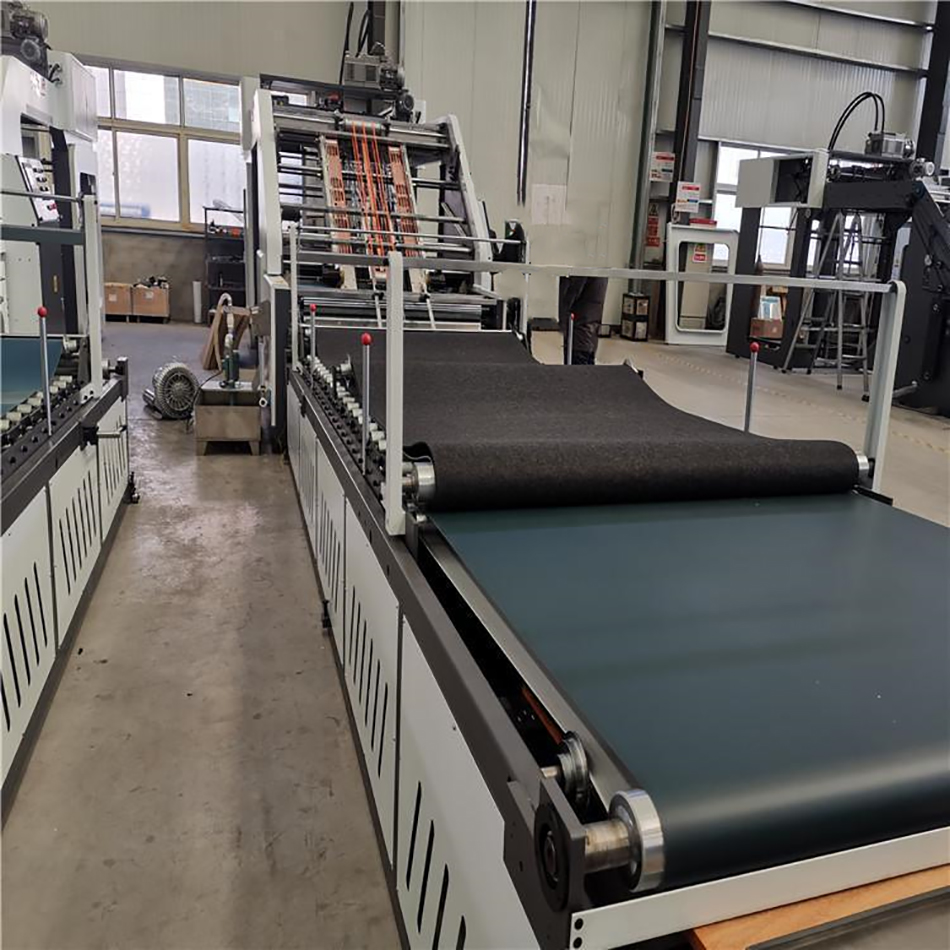

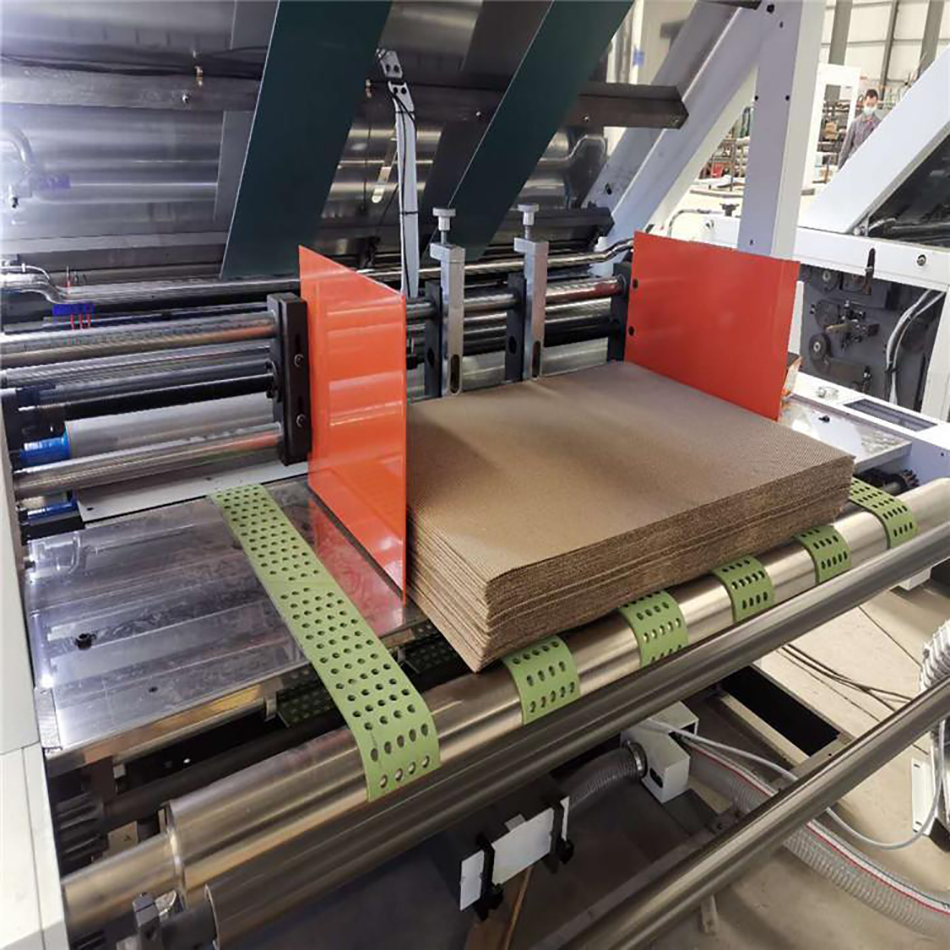

USAGE AND CHARACTERISTIC .The vacuum suction-type feeding system can lead the paper accurately Into the machine; cycle stacking planes in a state of non-stop the next batchof paper stack well. So that more efficient. .Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking. .Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceedes the top sheet. .Machine uses touch-screen/PLC control system. the circuit system isstable,and can automatically display the failure alarm. .The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste. .Floating removable press, to ensure that laminated paper will not be crushed. and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick. .Control of water tank cleaning cycle using an independent method,clean,hard rubber product. .For 175g-500g of color cardboard and A/B/C/D/E/F corrugated laminating. INTRODUCTION This machine is used for the laminating of color top sheets and corrugated paper. Adopts feeder feeding the top sheet and suction device sending thebottom sheet combines fully automated. Simple operation, easy maintenance: high speed and high precision.

Our CHUANGXIN machine exported to more;50 countries,such as;The;United States,Australia,South Korea,Malaysia,Philippines,Thailand,Indonesia,Cambodia,Vietnam,Bangladesh,SriLanka,India, Nepal,Uzbekistan,Tajikistan,Pakistan,Saudi,Arabia,Belarus,Kenya,Turkey,Russia,Kuwait, Ukraine,Bulgaria,Egypt,Latvia,Jordan,Lithuania,Romania,Serbia,Algeria,Nigeria,Slovenia,Angola,Germany,Poland,Spain,Slovakia,Portugal,Chile,Paraguay,Bolivia,Canada,Colombia,Mexico, Albania,Czech ,Morocco, British,Kazakhstan,Haiti;,Georgia;and so on,and got a good reputation.

显示屏

Display screen

台达(台湾)

Delta (Taiwan)

漩涡气泵

Vortex Pump

恒力牌 (上海)

Shanghai Hengli

伺服驱动器

Servo Driver

英威腾

INVT

接触器

Contactor

施耐德(法国)

SCHNEIDER(The French)

可编程控制器

PLC

松下(日本)

Panasonic(Riben)

液位开关

Liquid Level Switch

松凌(台湾)

CKC(Taiwan)

开关电源

Switching power supply

欧姆龙(日本)

OMRON

主机变频器

The host inverter

台达牌(台湾)

Delta (Taiwan)

压输平台变频器

Pressure platform inverter

台达牌(台湾)

Delta (Taiwan)

压输平台马达电机

Pressure platform motor

仲勤牌

Zhong'qin

压输皮带

Transfer press belt

意大利(合资)

Italy(joint venture)

同步轮

同步带

Synchronous wheel

Synchronous belt

san'bis (日本)

Sanbi's Riben (joint venture)

整机链条、链轮

The host chain, sprocket

朝和牌(中日合资)

CHOHO (Sino-Japanese Joint venture)

轴承

Bearing

瓦、哈、洛(三大厂)WTJB, HRB,LYC

型号 Model

HL-1300A-II

HL-1450A-II

HL-1550A-II

HL-1650A-I

最大贴面尺寸

Max size of laminating

1300mm×1250mm

1400mm×1250mm

1500mm×1250mm

1600mm×1250mm

最小贴面尺寸

Min size of laminating

360mm×360mm

360mm×360mm

360mm×360mm

360mm×360mm

经济速度 Economic speed

0-100 /min

0-100 /min

0-100 /min

0-100 /min

裱纸精度 Laminating

±1

±1

±1

±1

功率 Power

7KW

7.5KW

7.5KW

7.5KW

外形尺寸 Size

10m×2m×2.2m

10m×2.1m×2.2m

10m×2.2m×2.2m

10m×2.3m×2.2m

重量 Weight

About 3.5t

About 4t

About 4t

About 4t
