Hebei Dongguang County ChuangXin Carton Machinery Manufacturing Factory

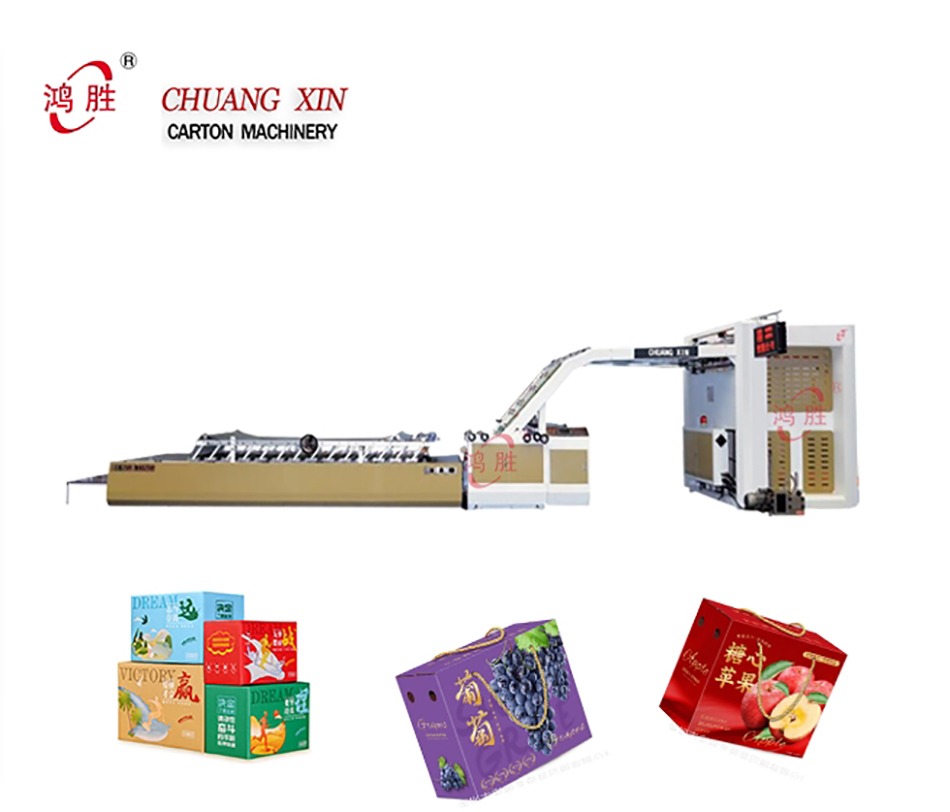

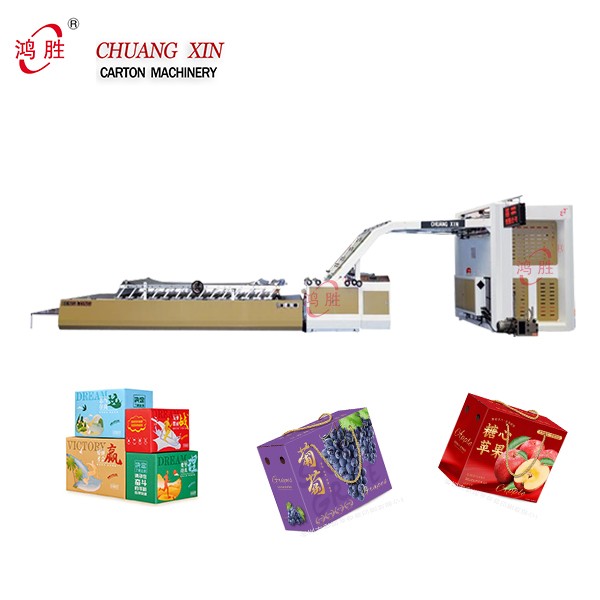

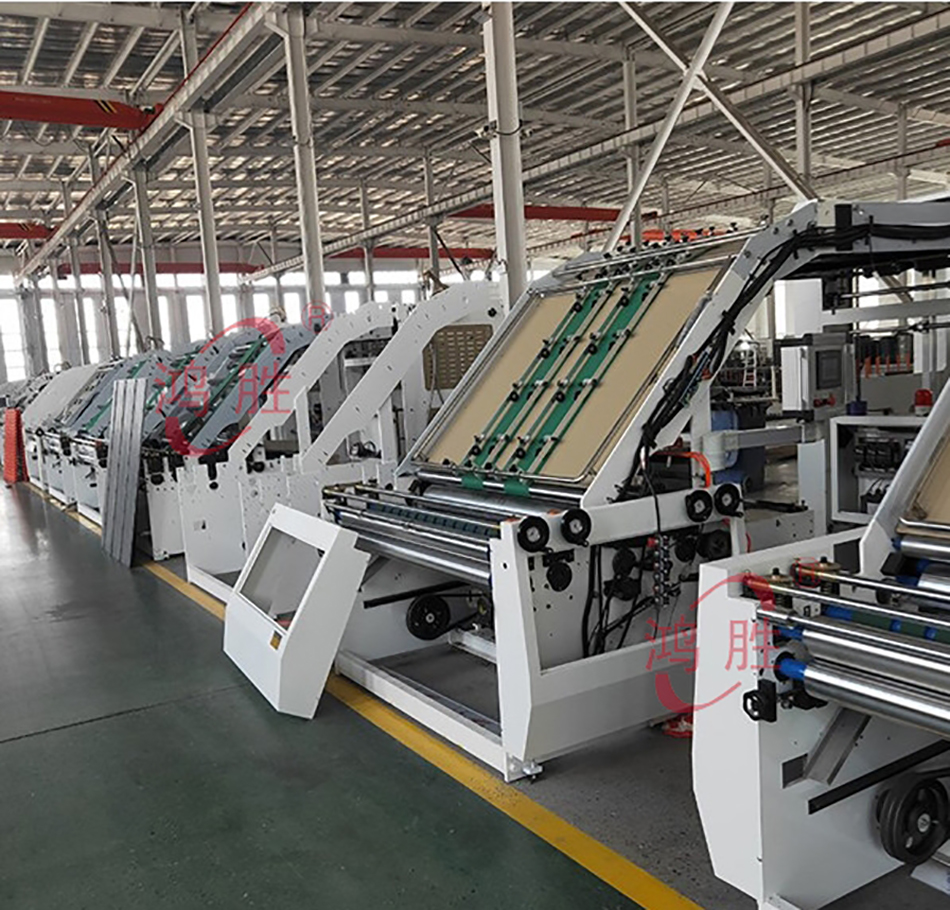

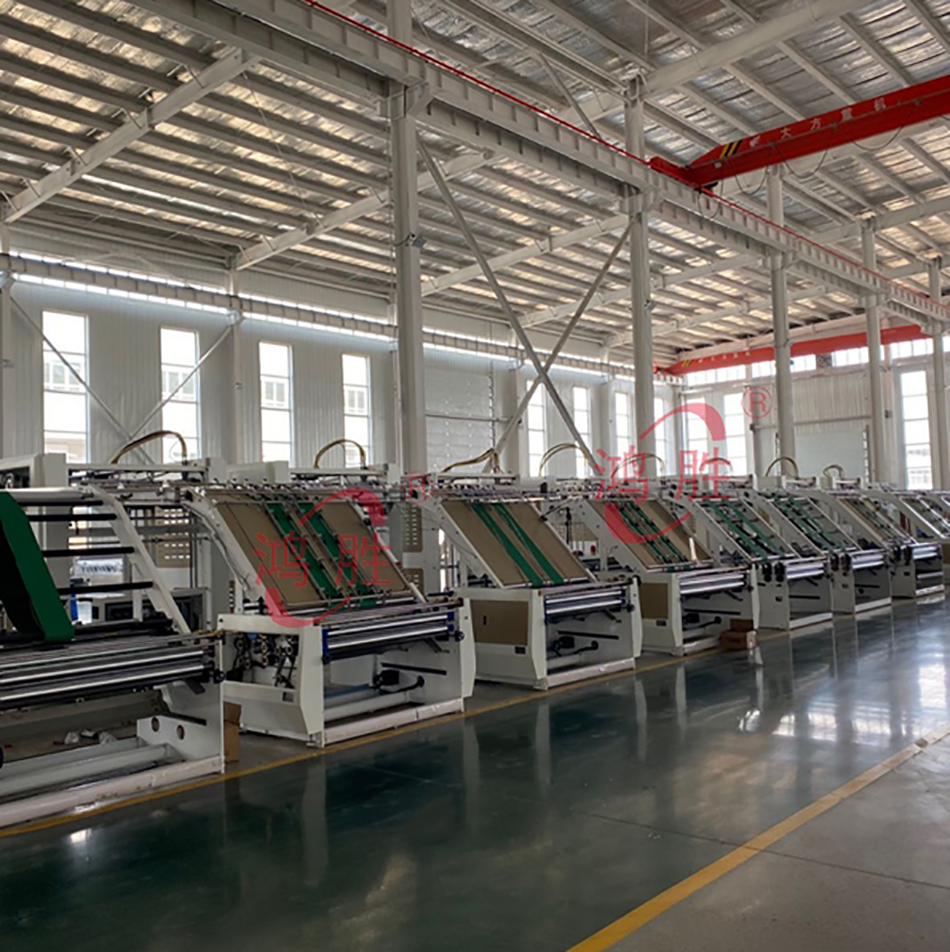

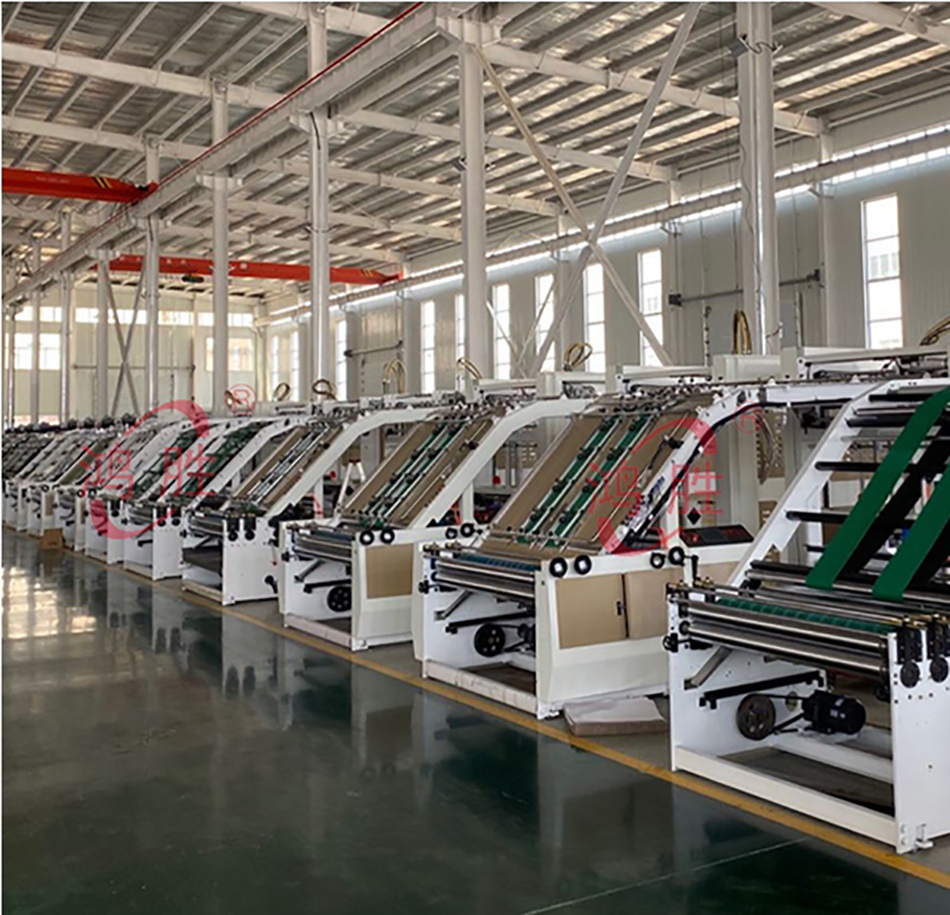

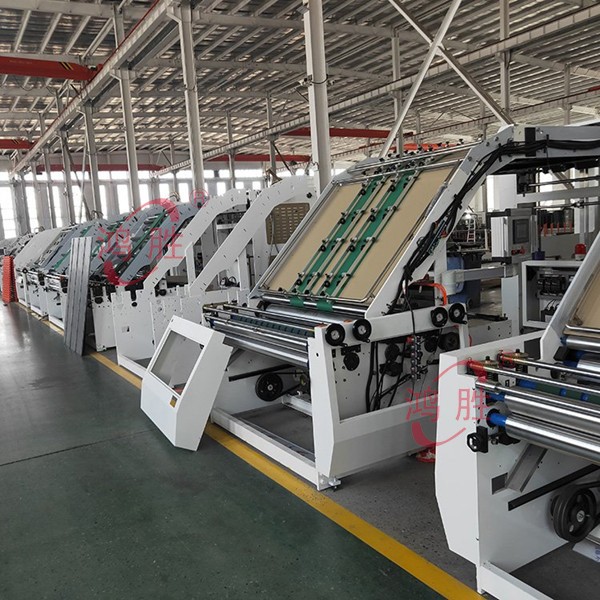

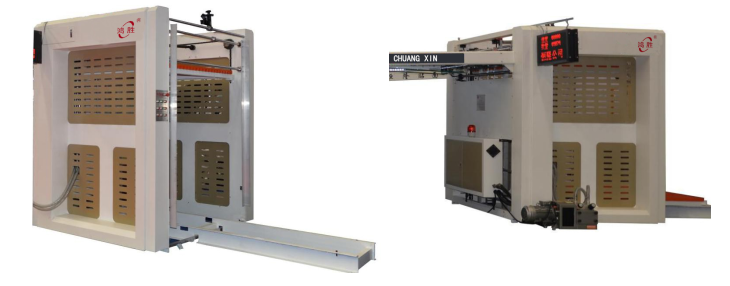

automatic flute laminating machine/cardboard to corrugated board flute laminator/sheet to sheet glue laminator
Introduction:

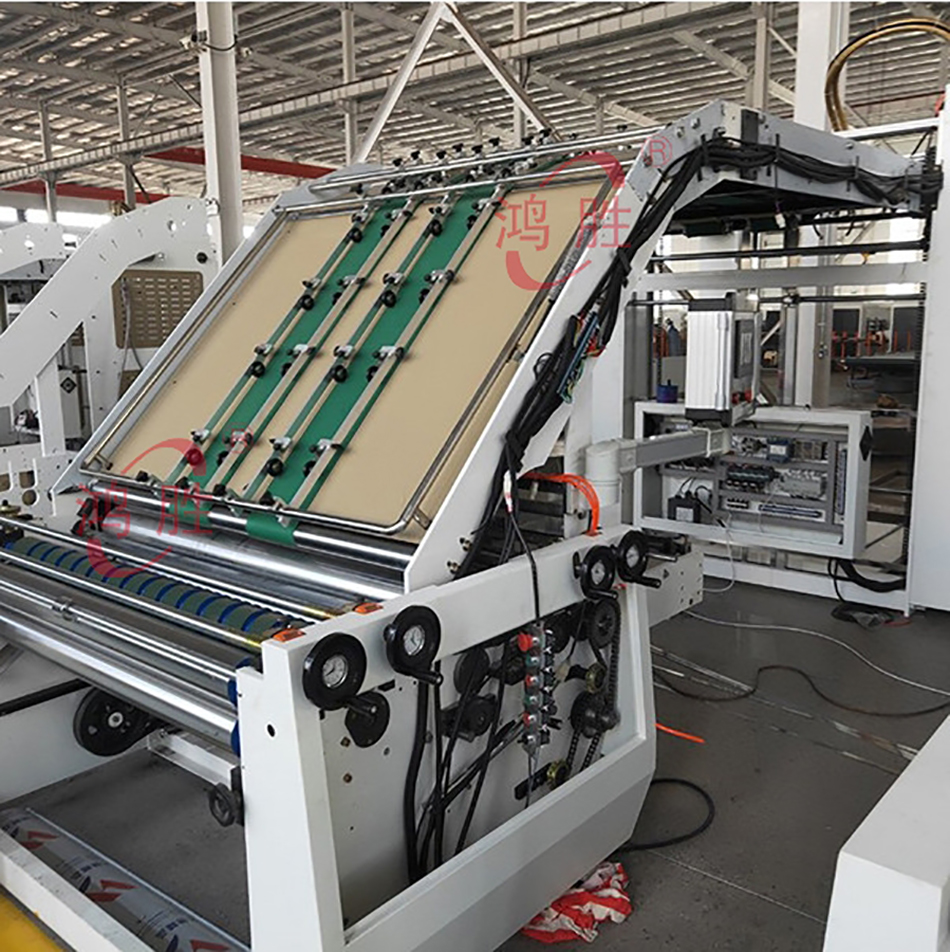

◆ The vacuum suction-type feeding system can lead the paper accurately into the machine;cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient.
◆ Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking.
◆ The machine operation is stable, surface paper with corrugated paper joint very Accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust.

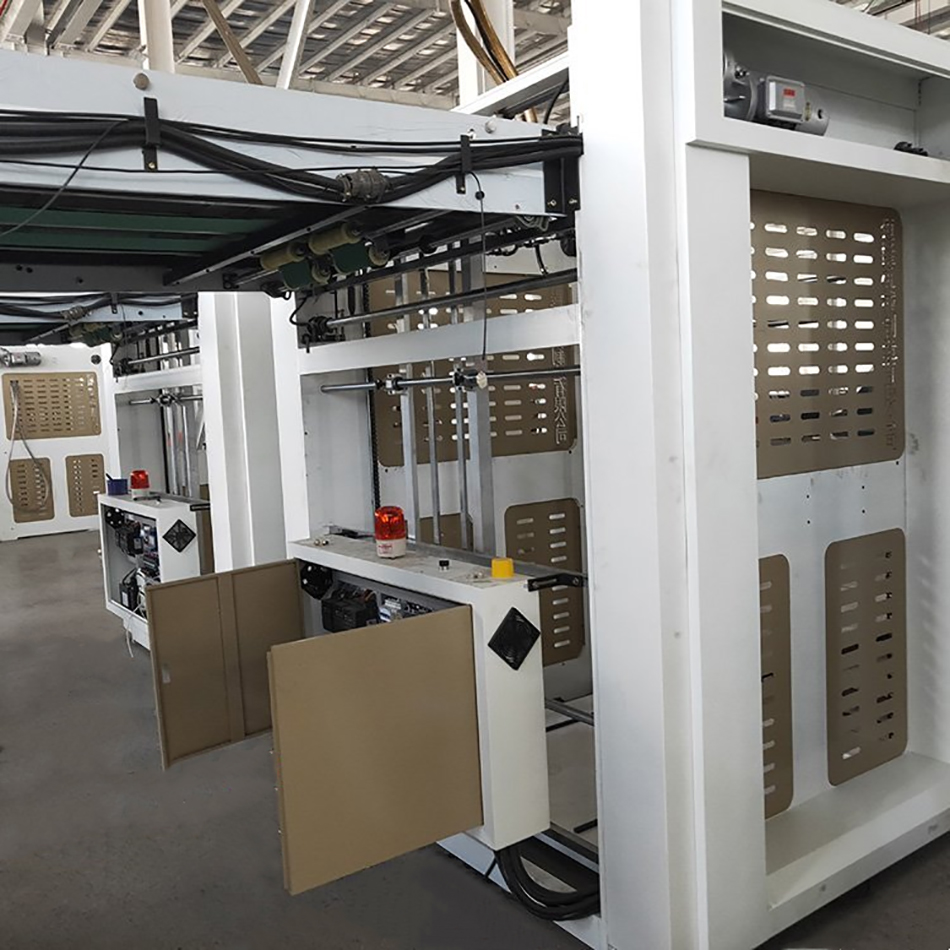

◆ Machine uses touch-screen/PLC/servo motor control system, the circuit system is stable, and can automatically display the failure alarm.
◆ Automatic gluing, and the glue can be used circulatory, avoid glue waste.
◆ Roller design scientifically, avoid glue fly out when the speed is high.
◆ Pressure rollers adopt unilateral adjustment, convenient and fast.
◆ Rocker controls wash roller's fluctuation, easy cleaning.
◆ Counter designs scientifically, easy recording the amount you have been worked.
|
型 号 Model |
HL-1300A-Ⅲ |
HL-1450A-Ⅲ |
HL-1550A-Ⅲ |
HL-1650A-Ⅲ |
|
最大贴面尺寸 Max laminating size |
1300mm×1250mm |
1400mm×1250mm |
1500mm×1250mm |
1600mm×1250mm |
|
最小贴面尺寸 Min laminating size |
400mm×400mm |
400mm×400mm |
400mm×400mm |
400mm×400mm |
|
经济速度 Economic speed |
0-100片/min |
0-100片/min |
0-100片/min |
0-100片/min |
|
裱合精度 Laminating precision |
±1.5 |
±1.5 |
±1.5 |
±1.5 |
|
功率 Power |
10kw |
12kw |
12kw |
12kw |
|
外形尺寸 Size |
13.5m×2m×2.4m |
13.5m×2.05m×2.4m |
13.5m×2.15m×2.4m |
13.5m×2.25m×2.4m |
|
重量 Weight |
About 4.8t |
About 5t |
About 5.2t |
About 5.4t |
|
底纸厚度 |
A/B/C/E/F楞 2/ 3/4/5层 7/层 12mm内 |
|||
|
面纸厚度 |
150-600克 |
|||
|
显示屏 |
display screen |
台达（台湾） |
Delta (Taiwan) |
|
开关电源 |
Switching power supply |
欧姆龙（日本） |
OMRON |
|
伺服驱动器 |
ServoDriver |
台达（台湾） |
Delta (Taiwan) |
|
飞达 |
Feeder |
日本日光公司（零件组装） |
Japanese Rigung |
|
飞达变频器 |
Feida inverter |
台达（台湾） |
Delta (Taiwan) |
|
真空泵 |
Vacuum pump |
贝克（德国）欧乐霸 （台湾） |
BECKE（Deguo）REUROVAC (Taiwan) |
|
漩涡气泵 |
Vortex Pump |
上海全风牌 |
Shanghai Quanfeng |
|
同步轮 |
Synchronous wheel |
San bis（日本） |
San bis（Ripen） |
|
同步带 |
Synchronous belt |
盖茨（美国） |
GATES（USA） |
|
整机轴承 |
Bearing |
瓦、哈、洛（三大厂） |
WTJB,HRB,LYC |
|
整机链条 |
The host chain |
朝和牌（中日合资） |
CHOHO (sino-JapaneseJoint venture) |
|
压输皮带 |
Transfer press belt |
意大利（合资） |
Italy（Joint venture） |
|
可编程控制器PLC |
PLC |
松下（日本） |
Panasonic（Japanese） |
|
接触器 |
Contactor |
施耐德（法国） |
SCHNEIDER（The French） |
|
主机变频器 |
The host inverter |
台达（台湾） |
Delta (Taiwan) |
|
压输平台变频器 |
Pressure platform inverter |
台达（台湾） |
Delta (Taiwan) |
|
压输平台电机 |
Pressure platform motor |
上海欧特 |
Shang'hai Oute |
