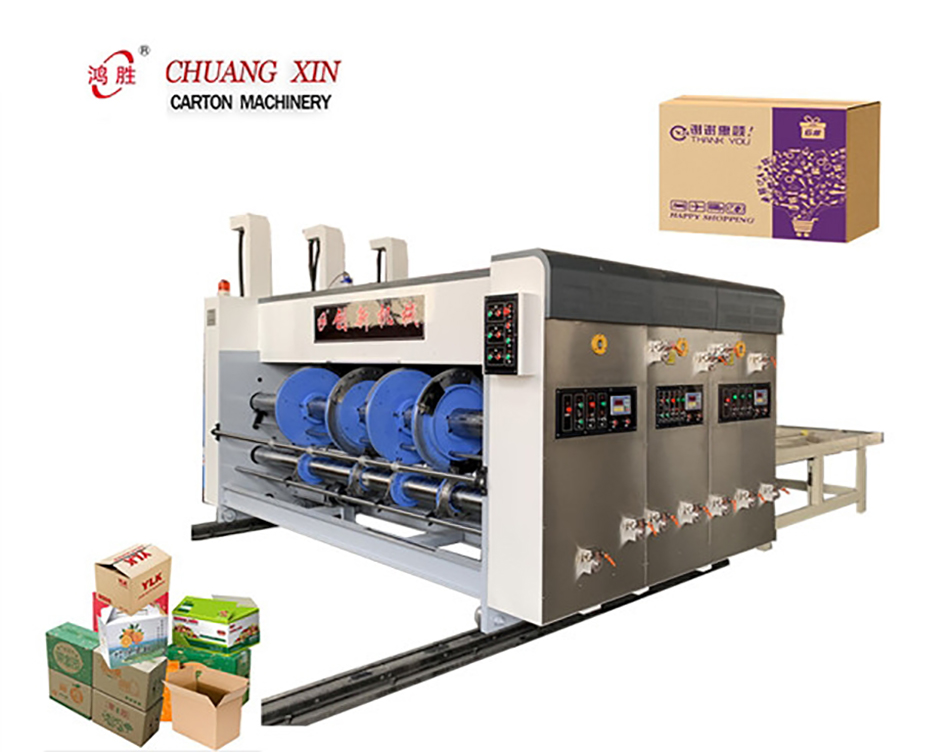

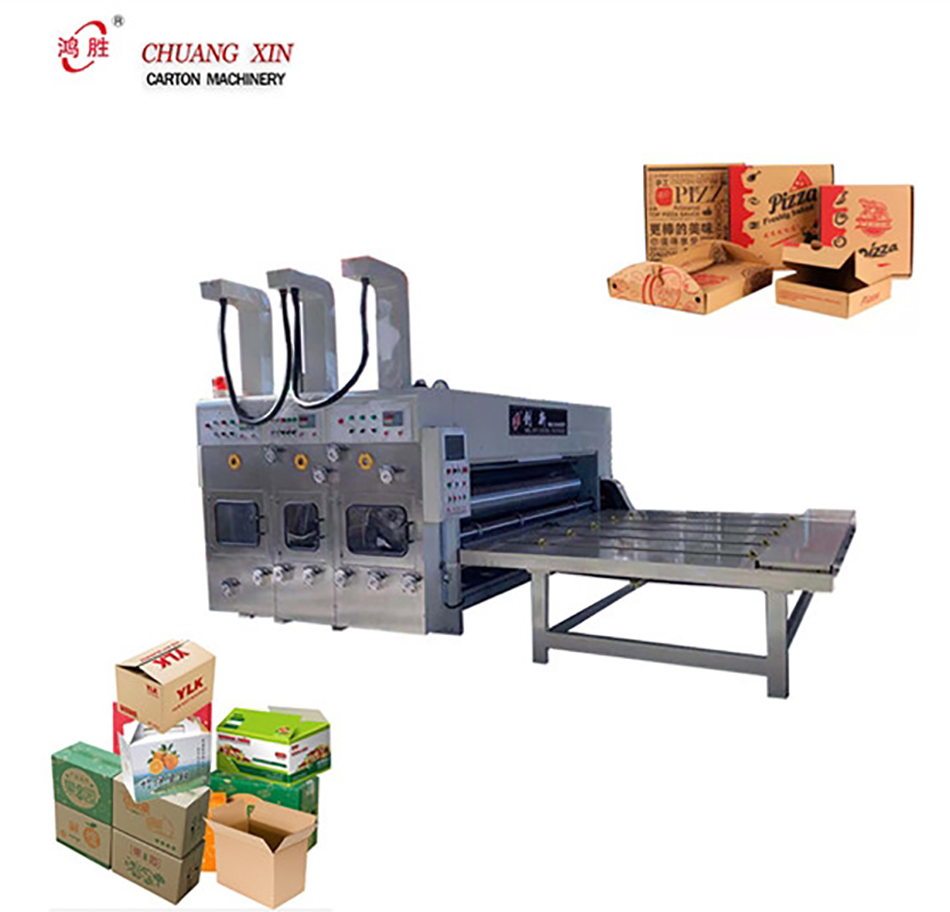

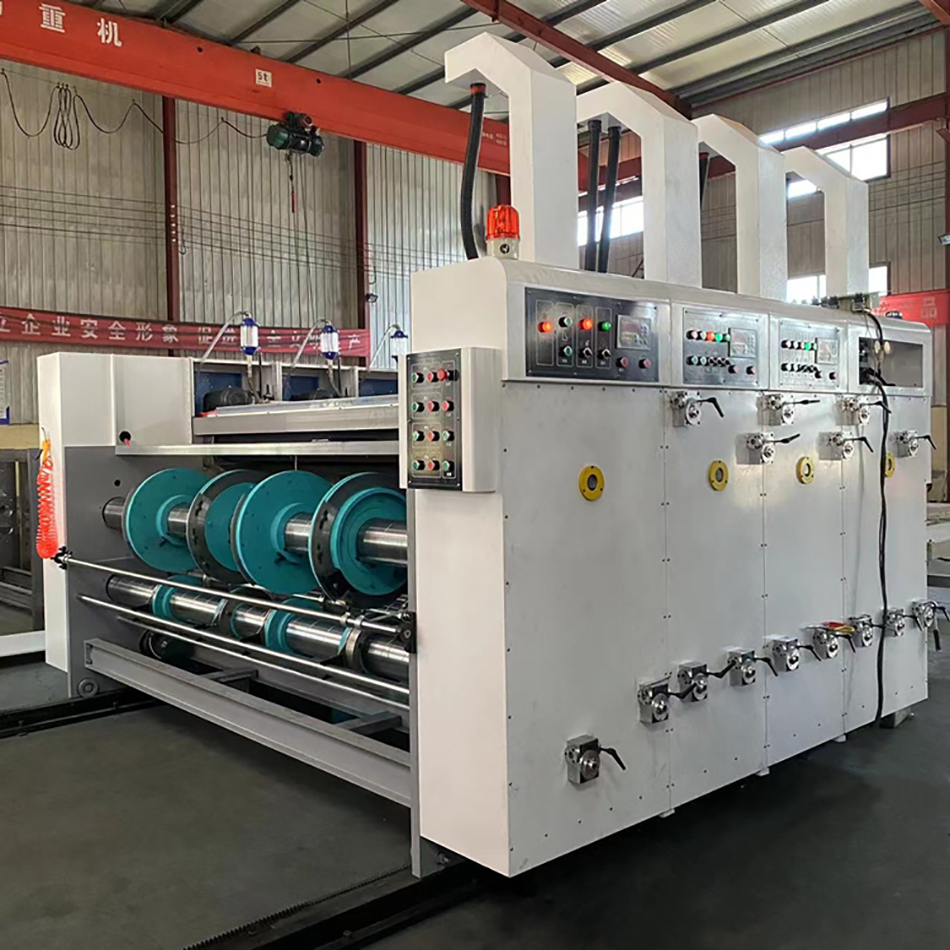

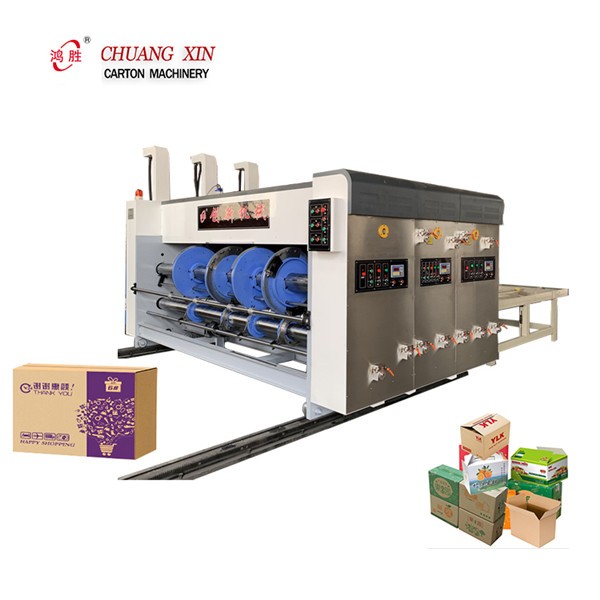

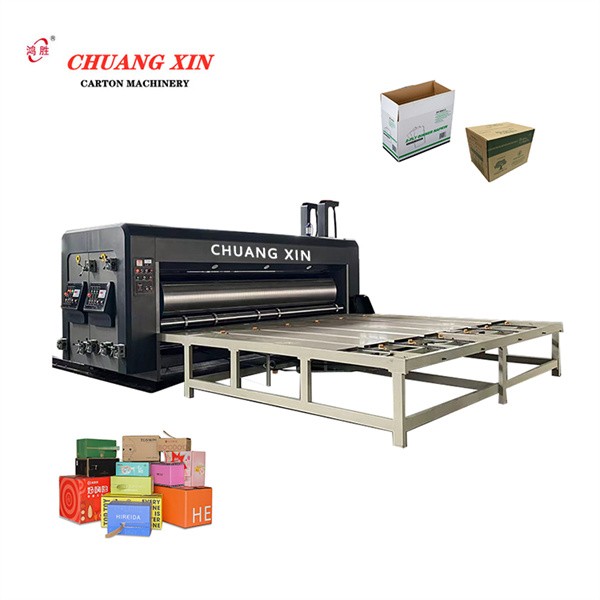

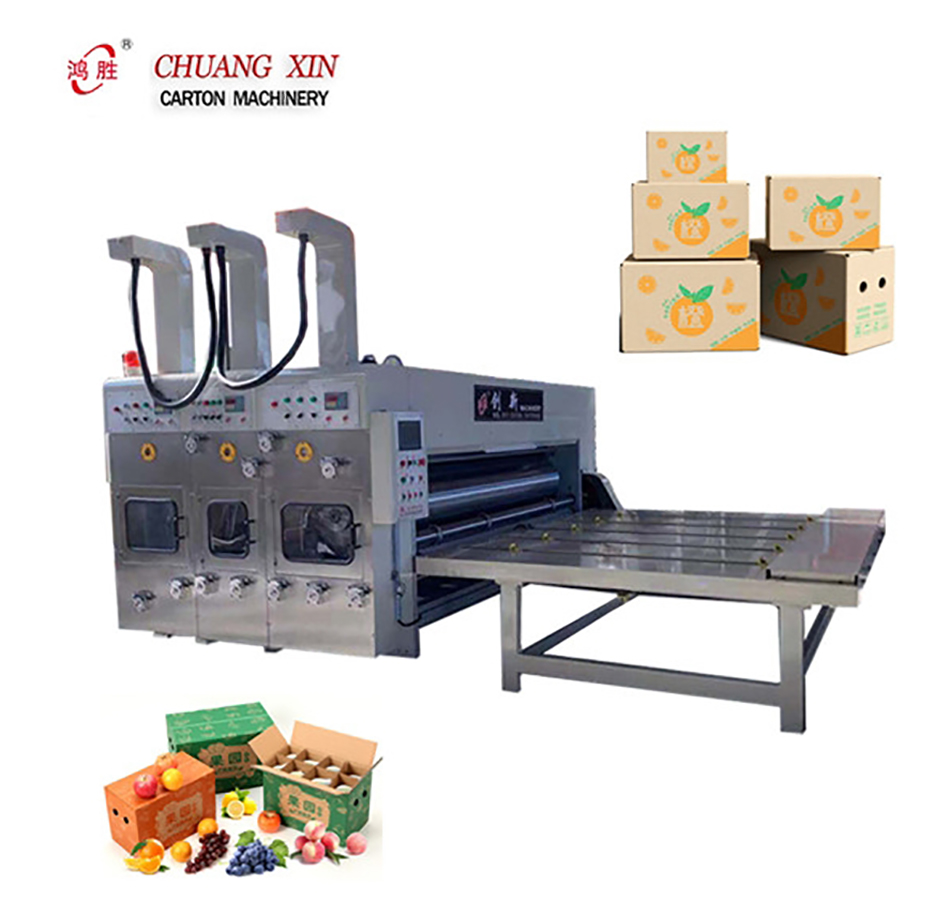

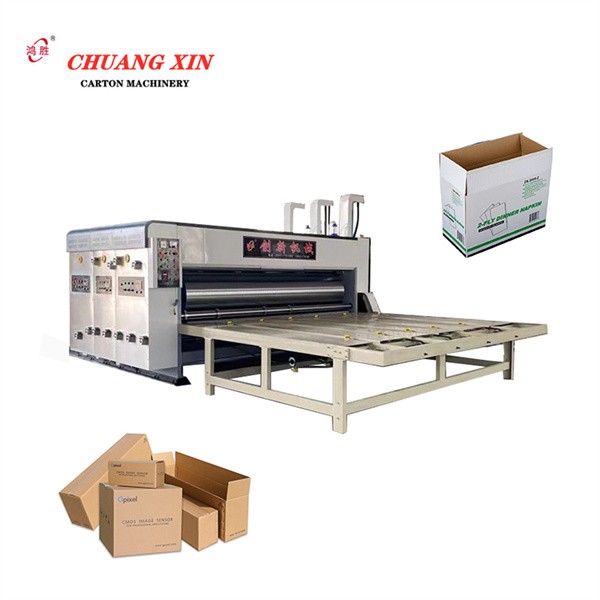

Type Chain Packing Printing Slotting Die Cutting Corrugated Cardboard Printer Slotter Die Cutter Machines

Function introduction

★ Printing Slotting Machine adopts sustainable chain feeding paper, and the counter records production quantity.

★ Each unit is equipped with a sudden stop switch, when in need of stopping to use it.

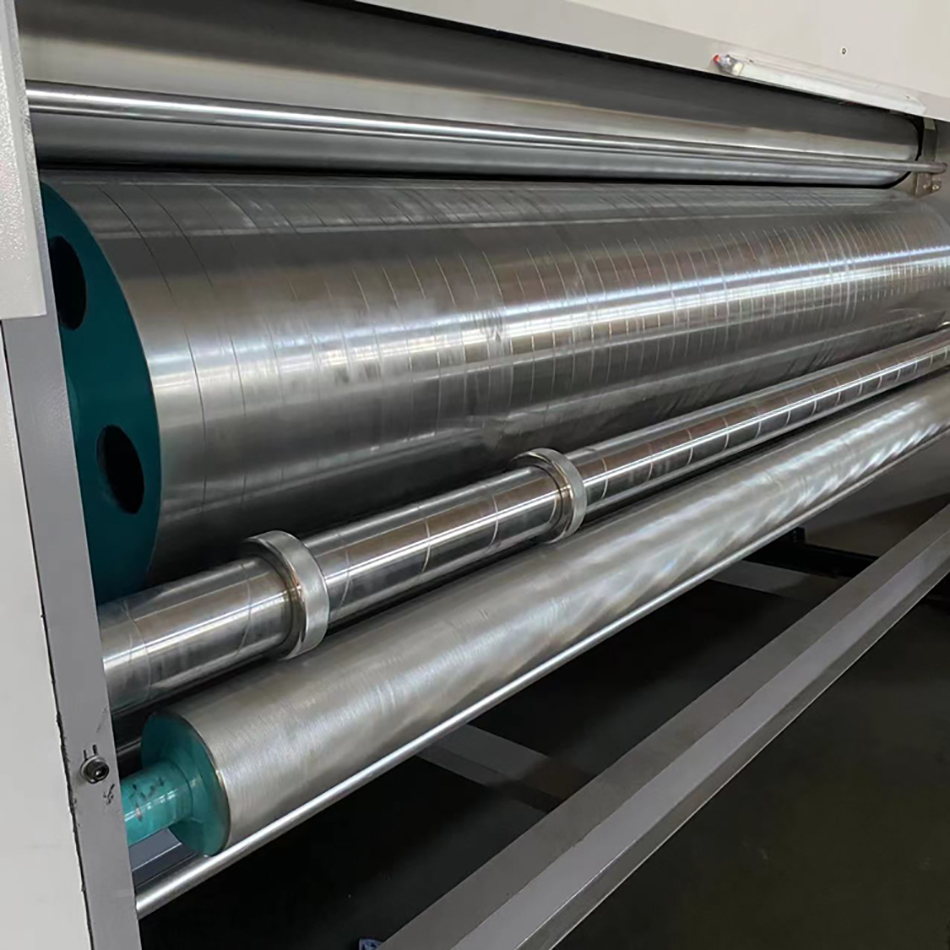

★ The machine adopts rubber supply ink roll system.

★ The machine adopts printing phase electric digital control.

★ Transverse phase, mechanical manual operate, control range is 12mm.

★ Slotting tool apron manual three points synchronous move transversely structure.

★ Transmission structure adopts double oil pump circulating lubrication.

Product Series		1200 series	1400 series	1600 series	2500 series
( Model) (W×L)mm (Technical Parameter)		1200×2200 1200×2400 1200×2800	1400×2400 1400×2800 1400×3200	1600×2400 1600×2800 1600×3200	2500×2400 2500×2800 2500×3200
Machine Design Speed (PCS/min)		80	80	70	60
Machine Working Speed (PCS/min)		60~70	50~60	50~60	30~50
Max. Feeding Size (mm)		1200×2100 1200×2300 1200×2700	1400×2300 1400×2700 1400×3100	1600×2300 1600×2700 1600×3100	2500×2300 2500×2700 2500×3100
Min. Feeding Size (mm)		320×650	380×750	480×750	550×750
Max. Printing Size (mm)		1200×1900 1200×2100 1200×2500	1400×2100 1400×2500 1400×2900	1600×2100 1600×2500 1600×2900	2500×2100 2500×2500 2500×2900
Standard Printing Plate Thickness (mm)		7.2	7.2	7.2	7.2
Color Accuracy (mm)		≦1.0	≦1.0	≦1.0	≦1.0
Metal Supply Ink Roll (pixels)		250~300	250~300	250~300	250~300
Supply Ink Method		rubber shaft	rubber shaft	rubber shaft	rubber shaft
Feeding Method		chain wheel feeding	chain wheel feeding	chain wheel feeding	chain wheel feeding
Printing Roll Transverse Movement (mm)		±6	±6	±6	±6
Printing Roller Axial Adjustment		360°	360°	360°	360°
Min. Slotting Distance (mm)	Positive Cut (mm)	170×170×170×170	185×185×185×185	185×185×185×185	200×200×200×200
Min. Slotting Distance (mm)	Reverse Cut (mm)	340×80×340×80	290×80×290×80	290×80×290×80	315×80×315×80
Max. Slotting Depth (mm)		300	350	400	590
