Bundling Carton Express Boxes Automatic PE Packing Paperboard Tying Machinery
Essential details
Type:Wrapping Machine
Applicable Industries:Garment Shops, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Printing Shops, Energy & Mining, corrugated carton box making manufacture
After Warranty Service:Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:Brazil, India, Mexico, Russia, Spain
Showroom Location:Egypt, India, Mexico, Russia, Spain
Condition:New
Application:Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type:Film
Packaging Material:Plastic
Automatic Grade:Semi-automatic
Driven Type:Electric
Voltage:380V50Hz
Place of Origin:Hebei China
Brand Name:CHUANG XIN
Certification:CE
After-sales Service Provided:Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Warranty:1 Year
Key Selling Points:high quality good price
Marketing Type:Hot Product 2019
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:PLC, Pressure vessel, Gear, Motor, Engine, Bearing, Gearbox, Pump

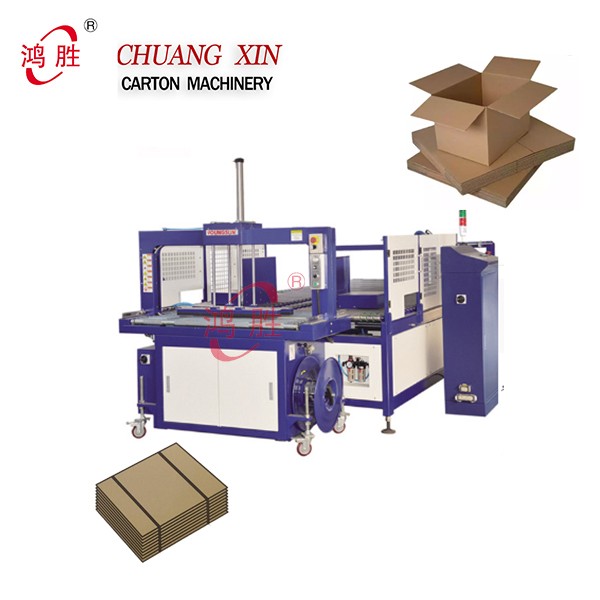

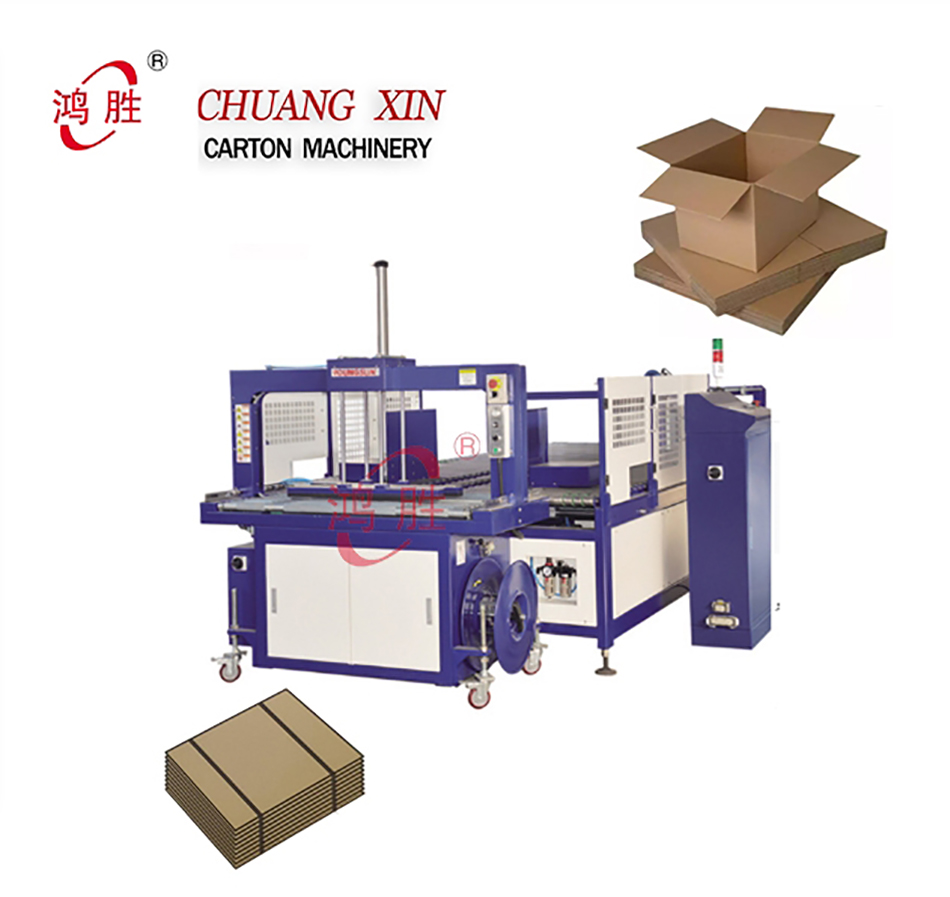

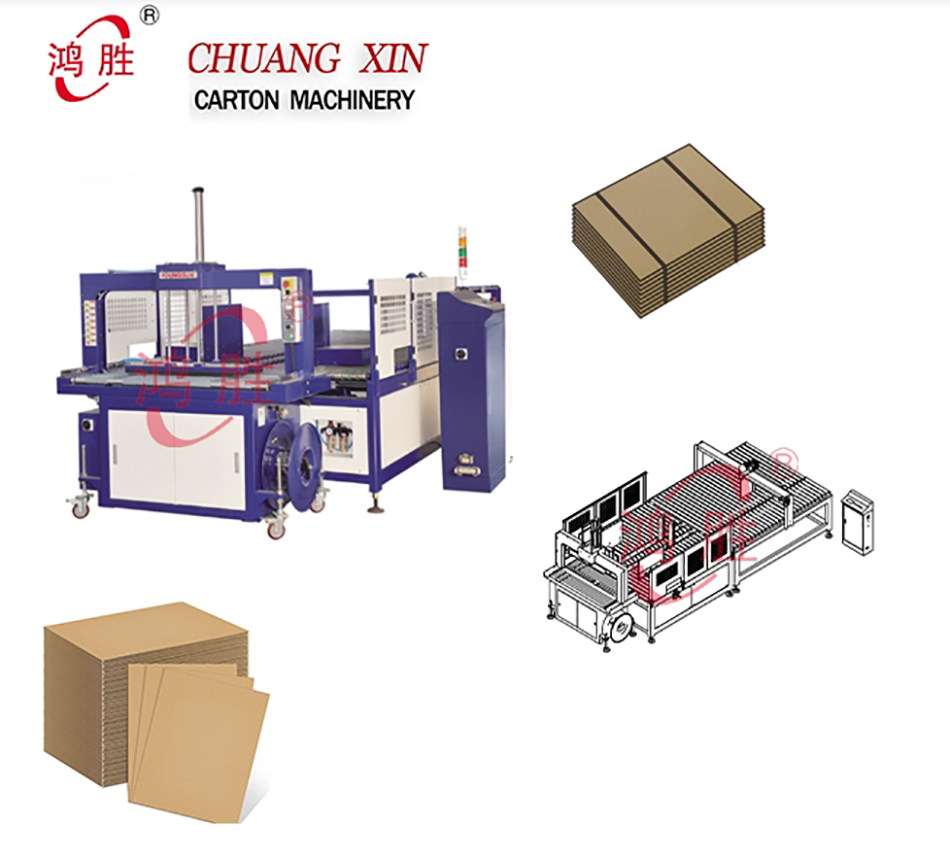

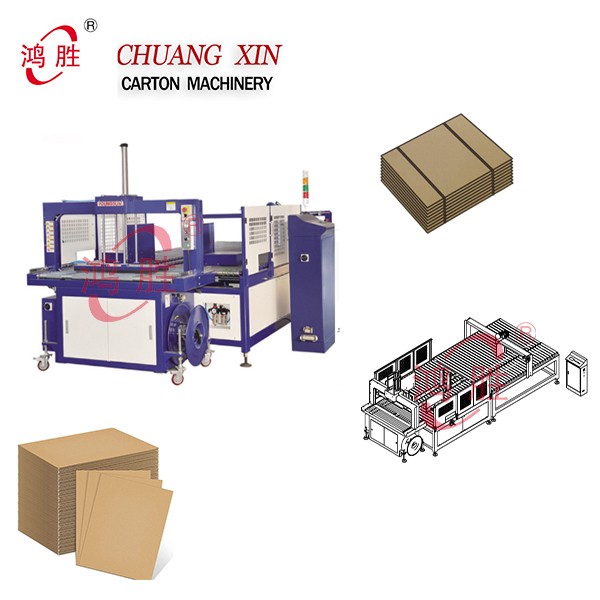

Name:Corrugated carton box Semi Automatic Strapping Machine
Keyword:strapping machine
Function:strapping
Color:Client's Requirement
Products Description Advantage
1) Automatic strap reset occurs when the strapping machine with time off only need to press the belt button, the machine will automatically send with no manual threading again.
2) Unique design tension, tightening stronger.
3) Automatic stop when finish strapping, save electricity
4) Provides comfortable and safe operations for various sizes, shapes and materials of straps
5) Single-chip electronic control, fully functional, easy to operate of the strapping machine.
Model |
1250 Model Automatic Strapping Machine |
Dimensions |
L:1450 mm×W:550 mm×H:1900 mm |
Strapping specifications |
Standard frame sizes: 1250 mm width× 500 mm height |
Work surface height |
860mm |
Load-bearing capacity |
80kg |
Strapping speed |
0-28 bundles /min |
Tightening force |
0-45kg |
Bonding method |
Hot melt method, bottom bonding, bonding surface ≥ 90%, bonding position deviation ≤ 2mm |
Machine weight |
1150 kg |
Noise |
Noise ≤ 75dB(A) in the operating environment |
Environmental conditions |
Humidity ≤ 90%, temperature 0-40 °C |
