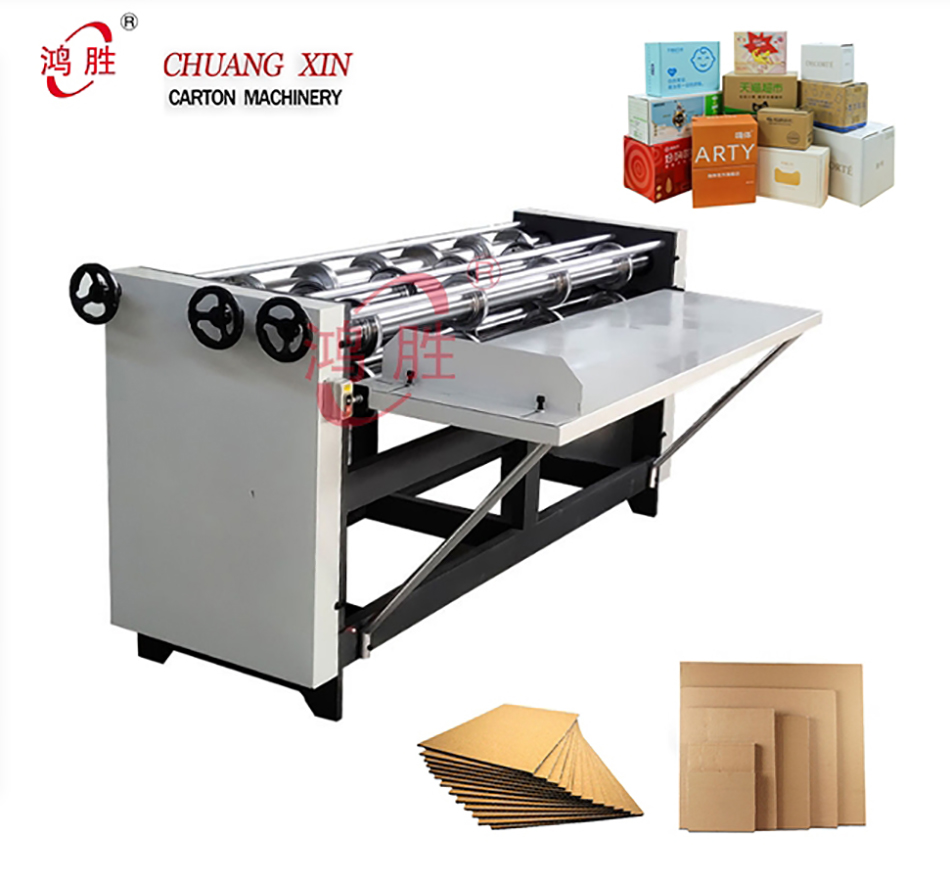

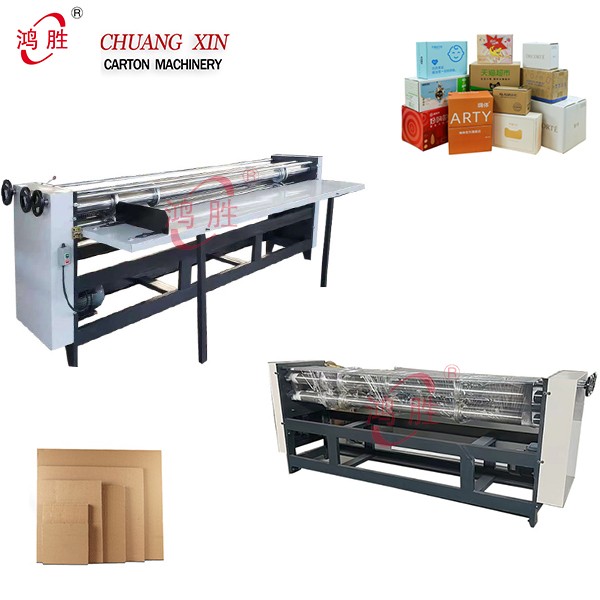

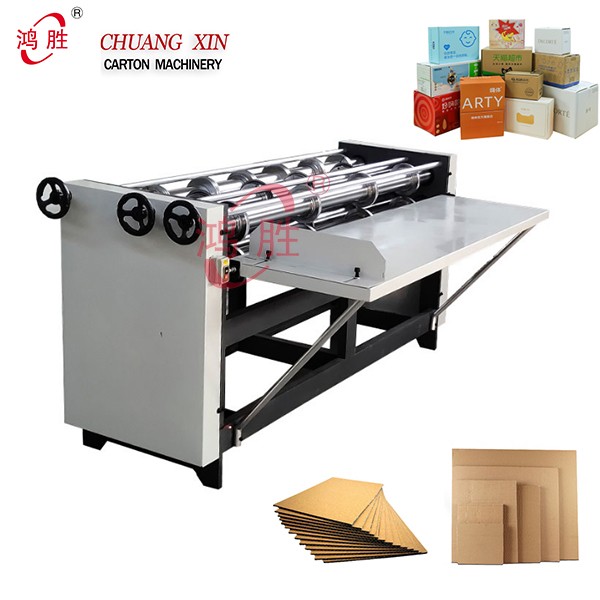

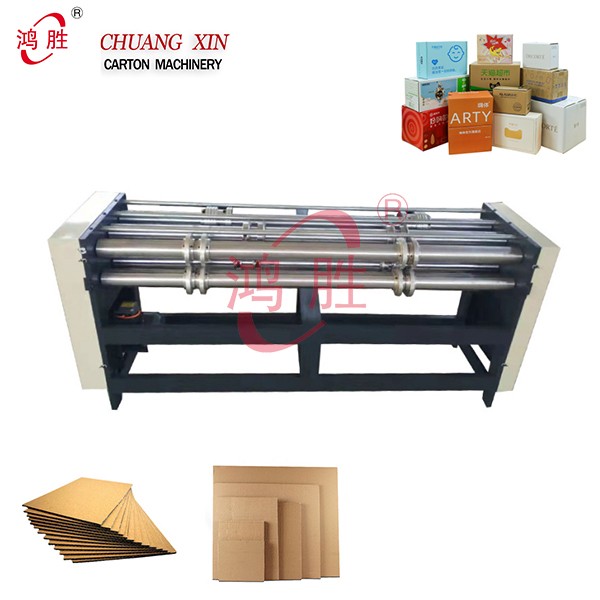

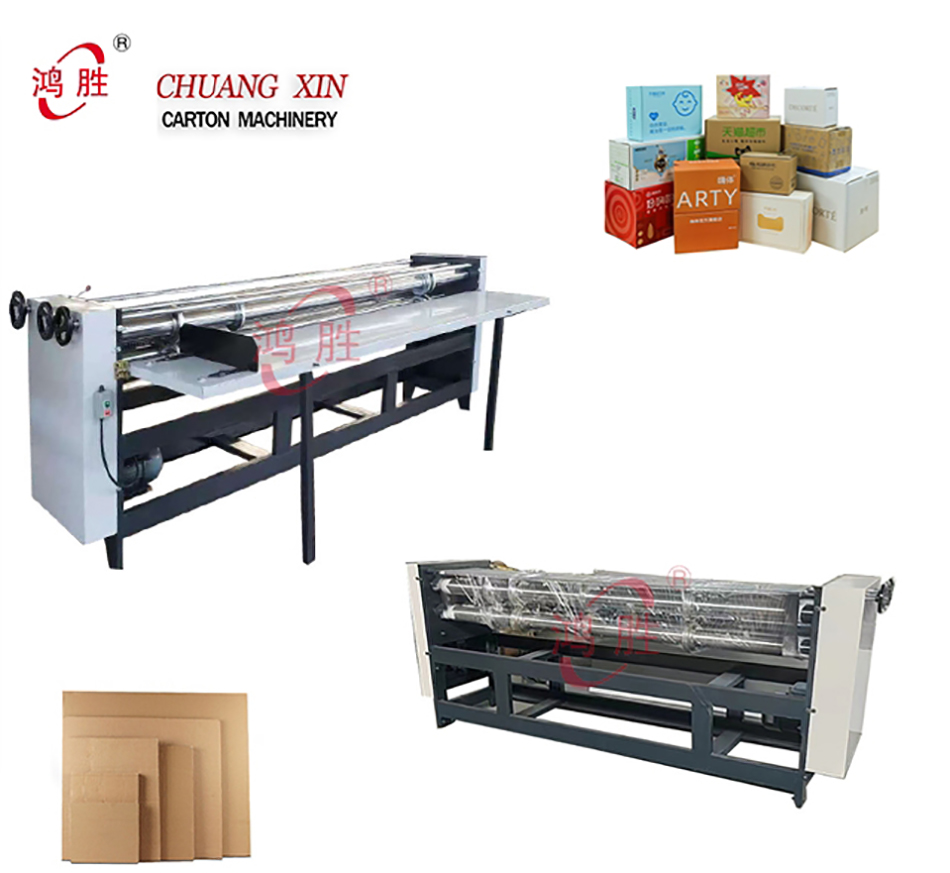

top corrugated cardboard carton rotary slitter scorer machine
Main Features of top corrugated cardboard carton rotary slitter scorer machine
it is suitable for single ,double ,or more layers corrugated carton producing
It can divide paper ,cut sides ,press mark at one time
Drive roller adopts high quality 45#steel ,hard chromium plating and the surface treated by lapping finish
The blades are made in qingdao ,Bowl type design , adopt high quality steel material ,processed by forging technology ,high frequency quenching ,Bowl type design ,the blades are sharp and durable.Convenient handwheel turning machine, used to adjust size, convenient and fast.
|
Model of top corrugated cardboard |
FY-2000 |
FY-2500 |
FY-3000 |
FY-3500 |
|
carton rotary slitter scorer machine |
||||
|
Width of paperboard (mm) |
2000 |
2500 |
3000 |
3500 |
|
Speed of paper dividing (m/s) |
2 |
2 |
2 |
2 |
|
Driving power (kw) |
1.1 |
1.5 |
2.2 |
2.2 |
|
Weight(kg) |
700 |
750 |
800 |
800 |
|
Size(mm) |
2400*1100*1170 |
3000*1100*1170 |
3400*1100*1170 |
4000*1100*1170 |
